首页产品分类工具与焊接解决方案压接钳、压接机、压力机压接钳2-1102770-5

点击放大查看

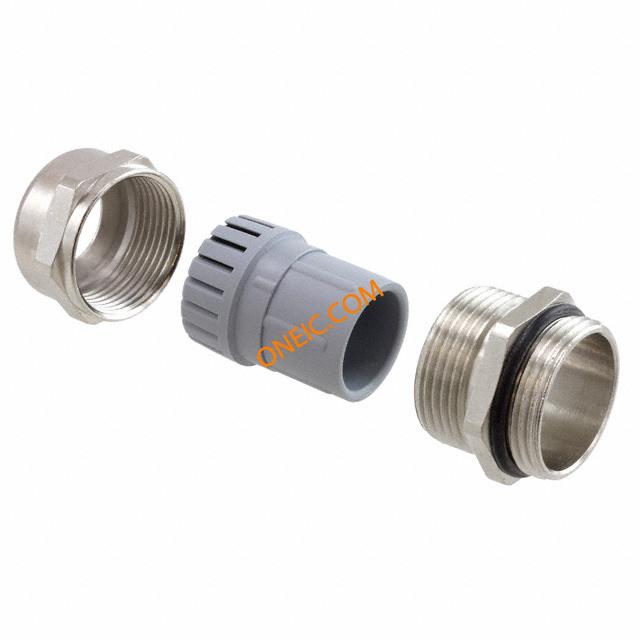

2-1102770-5

制造商	TE Connectivity Ltd.
描述	Cable Accessories Cable Fitting Brass Nickel Loose Piece HTS Connectors and Accessories CONN CABLE FITTING M25 METAL HD Connector, Metal cable fitting M25 Heavy Duty Power Connectors GLAND FITTING M25 METAL Cable Accessories Cable Fitting Brass Nickel Loose Piece Product Highlights:Cable Fitting - MetalCable Diameter Range = 11.00 - 17.00 mmThread Size = M25Corrosion ProtectedPackaging Method = Loose PieceSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 CABLE CLAMP, M25, METAL HDCONNECTOR,METALCABLEFITT TE Connectivity 电缆衬垫 HUT.M25.MS
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

零件号别名	512-7683	产品类别	Heavy Duty Power Connectors
标准包装数量	Bulk	工厂包装数量	5

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant

机械参数

重量	0.018	材料（通用）	:Brass
包装方式	Bulk	螺纹尺寸	M25
基体材料	Brass	电缆直径	11.00 â 17.00 [0.433 â 0.669]
壳体镀层	Nickel	包装数量	Loose Piece
直径（英寸）	:0.43"	连接器颜色	:-
螺纹/螺钉/孔尺寸	:-	内径 - 供货状态	:11mm
外壳与棱镜材料	:Metal	线缆外径（最大）	:17mm
外径-未扩张	:17mm

产品信息

类型	Cable Fitting	系列	:AMP Dynamic
产品子类型	Cable Fitting - Metal	附件类型	Cable Gland
规格说明	M25 Thread	适用产品/相关产品	Multiple Series

环境参数

额定等级	IP68 - Dust Tight, Waterproof	NEMA 机架尺寸	:IP68
液体防护	Yes

文档与媒体

PDF 文档

1598205.pdf
