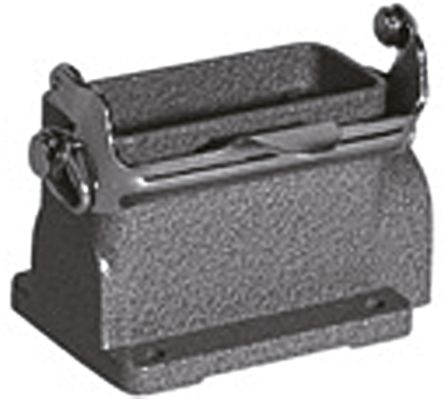

点击放大查看
1106413-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Power Connectors 2xM25 SURFACE MNTED HOUSING SIDE ENTRY CONN HOUSING SZ2 M25 HD HD Connector, Hsing HD.15.SG-LB.2.M25.G HDCONNECTOR,HSINGHD.15.SG-L TE Connectivity HD 系列 电源连接器外壳 HD.15.SG-LB.2.M25.G |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 尺寸 | 2 | 颜色 | 银灰色 |
| 宽度 | 50 mm [ 1.97 in ] | 高度 | 58 mm [ 2.28 in ] |
| 长度 | 81 mm [ 3.18 in ] | 材料（通用） | 铝 |
| 包装方式 | Bulk | 壳体颜色 | 灰色 |
| 螺纹尺寸 | M25 | 外壳颜色 | Gray |
| 连接器类型 | Base - Box Mount | 外壳涂层 | Powder Coated |
| 壳体材料 | Aluminum, Die Cast | 包装数量 | 5 |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | 3.150" L x 1.969" W x 2.244" H (80.00mm x 50.00mm x 57.00mm) |
产品信息
| 类型 | Housing | 样式 | Side Entry |
| 系列 | HD | 产品特性 | Feed Through |
| 部件编号 | 15 | 制造商全称 | HTS |
| 产品子类型 | 护套 | 锁定位置 | Side Clip on Base Bottom |
| 射频系列/标准 | 1106413 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | ||
