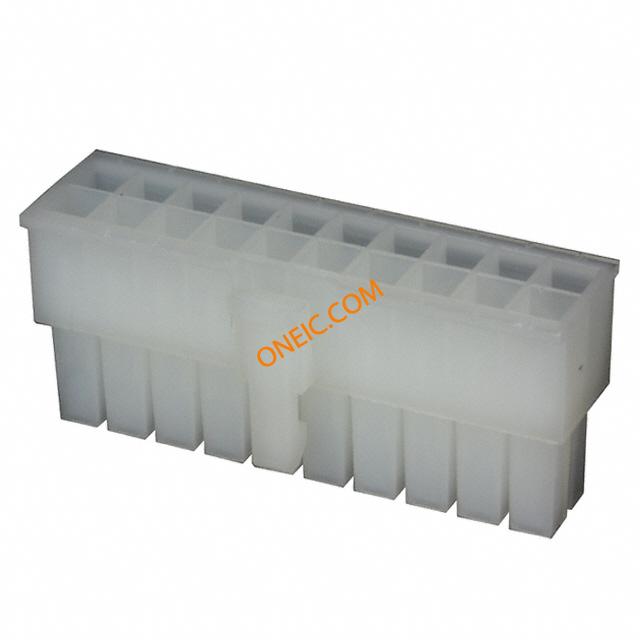

2-106527-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 20POS W/POSTIVE LOCK Pin & Socket Connectors 20P REC HSG 94V-2 AMP-DUAC Conn Housing RCP 20 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 20UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 20P DUAC REC HSG |
| 分类 |
商业参数
| 其他名称 | 21065270 | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | E28476 |
| 标准编号 | CSA, UL | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 是 | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 中心频率 | 带有 | 最大额定电流 | 9 A |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 宽度 | 11.7 mm [ .46 in ] | 高度 | 18.8 mm [ .74 in ] |
| 长度 | 43.3 mm [ 1.7 in ] | 密封型 | Not Sealed |
| 包装方式 | Bulk | 导线线规 | 18-26 AWG |
| 排间距 | 0.165" (4.20mm) | 触头类型 | Female Socket |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Without | 紧固类型 | Latch Lock |
| 安装样式 | SMD/SMT | 排数 | 2 |
| 封装形式 | Receptacle | 插入力 | 4 |
| 壳体材料 | Nylon | 包装数量 | 1500 |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 触点数 | 20 | 接触件端接 | Crimp |
| 位数 | 20 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Amp Duac |
| 产品子类型 | Receptacle Housings | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
文档与媒体
