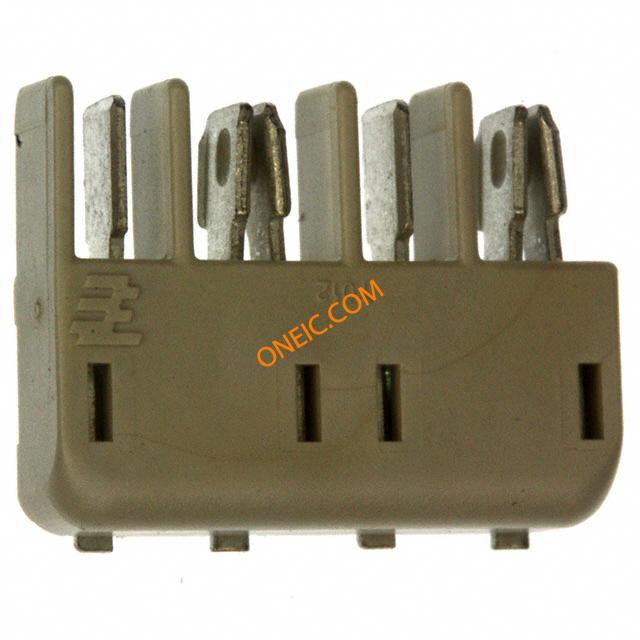

1954289-2
| 制造商 | |
| 描述 | Conn Board to Board M 4 POS 4mm Solder RA SMD T/R Lighting Connectors BLADE AND RCPT 4 POS WHITE LED Interconnects CONN RCPT & BLADE 4POS WHT SMD TE Connectivity 1954289 Series 4mm Pitch 4 Way 1 Row Right Angle Lighting Connectors, Solder Termination, 6A Conn Board to Board M 4 POS 4mm Solder RA SMD T/R Product Highlights:Connector AssemblyConnector Type = Blade and Receptacle LED LightingHermaphroditicNumber of Positions = 4Terminate To Printed Circuit Board CONNECTOR, BLADE & RECEPTACLE, 4WAY Connector,BladeandReceptacle,Hermaphroditic,Lighting,4Position,White Connector: PCB to PCB; hermaphrodite; PIN:4; 5A; 90VAC White Board-to-Board 4 Position Hermaphroditic Blade and Receptacle Connector TE Connectivity Hermaphroditic 系列 4mm节距 4路 (1排) 直角 照明连接器, 焊接端接, 6A , 表面安装 Connector,Blade & Recpt 4 Pos |
| 分类 |
商业参数
| 产品 | Hermaphroditic Blade & Receptacle Connectors | 其他名称 | A99124CT |
| 产品类别 | Lighting Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL档案号 | E28476 | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 125 V ac/dc | 击穿电压 | :1500V |
| 最大额定电流 | 6 A | 最小供电电压 | 90.0 |
| 连接器类型 - 电压输入 | LED Light | ||
机械参数
| 颜色 | White | 间距 | 4 mm |
| 宽度 | 15.9 | 长度 | 12.25 |
| 密封型 | No | 重量 | 0.01 |
| 材料（通用） | :High Temp. Thermoplastic | 包装方式 | Tape & Reel (TR) |
| 尾部类型 | In-line | 端接方式 | Solder |
| 触头类型 | Blade/Socket | 引脚间距 | :4mm |
| 外壳颜色 | Natural | 安装类型 | Solder Pads |
| 连接器类型 | Housing | 接触镀层 | Tin Over Nickel |
| 安装样式 | SMD/SMT | 排数 | 1 |
| 壳体镀层 | Matte Tin-Lead over Nickel | 高度（英寸） | 4.13 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 包装数量 | 1000 | 主要材料 | Lighting |
| 先合后断 | No | 端接样式 | Solder |
| 连接器颜色 | :White | 触点数 | 4 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 4 |
| 中心触点表面处理 | 4.0 | 接触镀层厚度 | 5.0 |
| 触点材料 - 配合 | Matte Tin | 触点材料 - 镀层 | nickel plated, tinned |
| 触点镀层厚度 - 柱（配合端） | 5.0 | ||
产品信息
| SPG | 1000 | 类型 | Board to Board |
| 样式 | Board to Board | 连接器性别 | M |
| 系列 | 1954289 | 方向 | Horizontal |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 制造商全称 | Hermaphroditic | 产品子类型 | Connector |
| 单元数量 | 1 | 测量制式 | 7.5 |
| 其他规格 | Yes | 应用细节 | Board to Board |
环境参数
| 插拔次数 | Without | 工作温度 | :105°C |
