点击放大查看

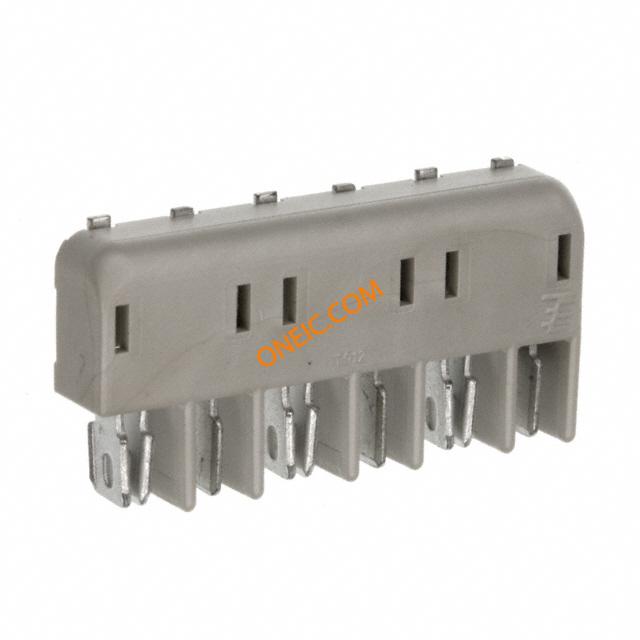

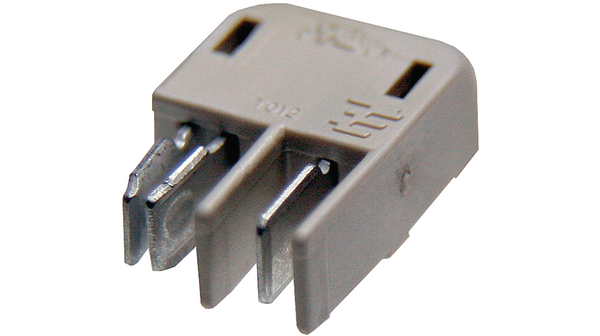

1954289-3
| 制造商 | |
| 描述 | Conn Board to Board M/F 6 POS 4mm Solder RA SMD T/R LED Interconnects CONN RCPT & BLADE 6POS WHT SMD TE Connectivity 1954289 Series 4mm Pitch 6 Way 1 Row Right Angle Lighting Connectors, Solder Termination, 6A Lighting Connectors BLADE AND RCPT 6 POS WHITE Conn Board to Board M/F 6 POS 4mm Solder RA SMD T/R Product Highlights:ConnectorBoard-to-Board4.00 mm CenterlineApplies To Printed Circuit BoardContact Current Rating, Max = 5 A Connector,BladeandReceptacle,Hermaphroditic,Lighting,6Position,White Connector: PCB to PCB; hermaphrodite; PIN:6; 5A; 90VAC Board-to-Board 6 Position 4 mm Pitch Hermaphroditic Blade Receptacle Connector Hermaphroditic connector 6P, 1954289-3, TE Connectivity TE Connectivity Hermaphroditic 系列 6路 4mm节距 (1排) 直角 照明连接器 , 焊接端接, 6A, 表面安装 Connector,Blade & Recpt 6 Pos |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A99125CT |
| 产品类别 | Lighting Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 防护类型 | No |
| MIL-C-55032 | No | UL档案号 | E28476 |
| CSA档案号 | LR7197 | 认可国家 | 是 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 125 V ac/dc | 极数 | 6 |
| 钳位电压 | 1500 | 额定交流电压 | 125 |
| 最大额定电流 | 5.0 | 触点电压（最大） | 125 |
| 最小供电电压 | 90.0 | 连接器类型 - 电压输入 | LED Light |
机械参数
| 颜色 | White | 间距 | 4 mm |

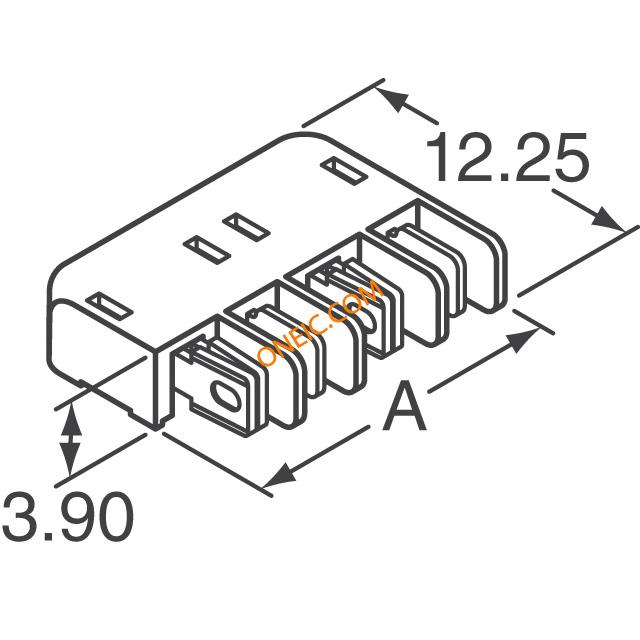

| 宽度 | 23.9 | 长度 | 12.25 |
| 密封型 | No | 重量 | 2.05 g |
| 包装方式 | Tape & Reel (TR) | 尾部类型 | In-line |
| 壳体颜色 | 自然 | 方向 | 直角 |
| 端接方式 | Solder | 触头类型 | Blade/Socket |
| 外壳颜色 | Natural | 安装类型 | Solder Pads |
| 连接器类型 | Housing | 接触镀层 | Tin |
| 安装样式 | 不带 | 排数 | 1 |
| 壳体镀层 | Matte Tin-Lead over Nickel | 高度（英寸） | 4.13 |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 包装数量 | 1000 |
| 面板安装类型 | SMD Soldering | 主要材料 | Lighting |
| 端接排数 | 焊接 | 先合后断 | No |
| 端接样式 | Surface Mount | 连接器颜色 | white |
| 触点数 | 6 | 位数 | 6 |
| 第一连接器极性 | Hermaphroditic | 中心触点表面处理 | 4.0 |
| 外部壳体颜色 | Natural | 安装孔直径 | 不带 |
| 典型触点布局 | 同轴 | 表面贴装焊盘尺寸 | Without |
| 接触镀层厚度 | 5.0 | 触点材料 - 配合 | Matte Tin |
| 触点材料 - 镀层 | nickel plated, tinned | 触点镀层厚度 - 柱（配合端） | 5.0 |
产品信息
| SPG | 1000 | 类型 | Board to Board |
| 样式 | Board to Board | 设计类型 | Hermaphroditic connector, SMD |
| 连接器性别 | M/F | 系列 | 1954289 |
| 可密封 | 否 | 方向 | Horizontal |
| 可堆叠 | No | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | Hermaphroditic |
| 产品子类型 | Connector | 单元数量 | 1 |
| 测量制式 | 7.5 | 连接方式 | Board-Board |
| 选择性装载 | No | 其他规格 | Yes |
| 输出配置 | Surface Mount, Right Angle | 应用细节 | Board to Board |
| 板对板配置 | Parallel Board-to-Board | ||
环境参数
| 温度 | Yes | 插拔次数 | Without |
| 工作温度 | -40...105°C | 封装热阻 | 1.57 mm [ .062 in ] |
