点击放大查看

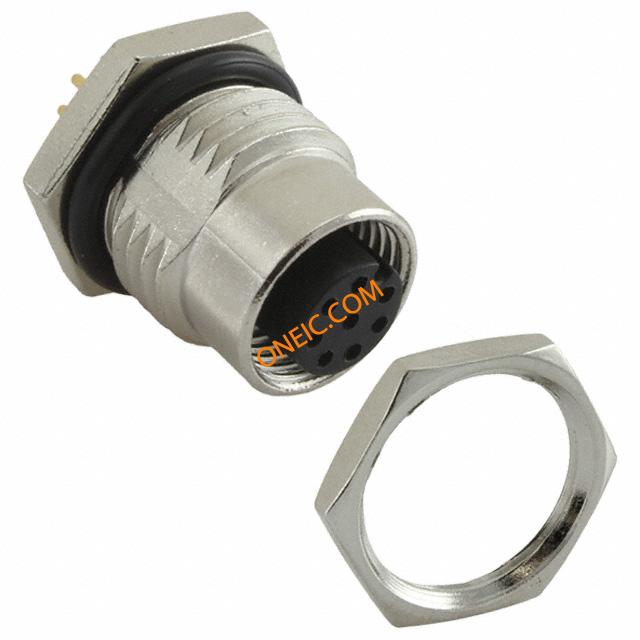

1838892-4
| 制造商 | |
| 描述 | Conn Circular F 8 POS Solder ST Panel Mount 8 Terminal 1 Port Cable Assemblies 8 POS PCB PIN M12 FRONT MOUNT FEMALE M8/M12 Connector System CONN FEMALE M12 8POS STR BLACK Ethernet Cables / Networking Cables 8 POS PCB PIN M12 FRONT MOUNT FEMALE M8/M12 Connector System Product Highlights:ConnectorNot Field ServiceableNumber of Positions = 8Connector Color = BlackThread Size = M12Search Keywords:soft shell, input/output, ASI Bus, M8 Sensor, M12 Sensor, M8/M12, sensor, LED M12 Mtl FEMALE PNL CONN. PCB Front (Hex) |
| 分类 |
商业参数
| 产品 | I/O Assemblies | 标准包装规格 | 50 |
| 产品类别 | Cable Assemblies | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Hand solderable with lead free solder |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| LED | Without | 额定电压 | 30VAC/DC |
| 供电电压 | 500 | 最大额定电流 | 2A |
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 端接方式 | Solder | 螺纹尺寸 | M12 |
| 第一连接器 | M12 Receptacle | 第二连接器 | No Connector |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 法兰特征 | 不带 | 引脚数 | 8 |
| 包装数量 | 50 | 面板安装类型 | Yes |
| 连接器颜色 | Black | 位数 | 8 |
| 外壳尺寸-插件 | M12-8 | 外壳材料及表面处理 | Nylon, Glass Filled |
| 典型触点布局 | 圆形 | 接触镀层厚度 | 5.9µin (0.15µm) |
| 第二连接器位数 | 0 | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 可密封 | 是 | 预装 | 是 |
| 产品子类型 | Connector | 视场 | No |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -25°C ~ 90°C |
