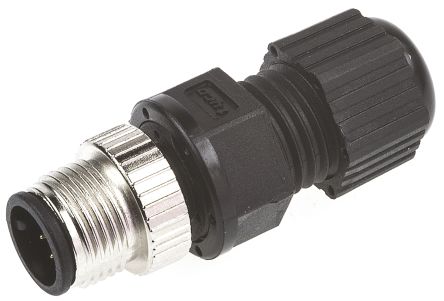

点击放大查看
1838275-4
| 制造商 | |
| 描述 | Conn Circular M 8 POS Solder Cup ST Panel Mount 8 Terminal 1 Port Circular Metric Connectors CONN 8 POS MALE METAL M8/M12 Connector System CONN MALE M12 8POS STR BLACK 8 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 14.4mm with Male Contacts M8/M12 Connector System Product Highlights:ConnectorField ServiceableNumber of Positions = 8Connector Color = BlackThread Size = M12Search Keywords:soft shell, input/output, ASI Bus, M8 Sensor, M12 Sensor, M8/M12, sensor, LED M12FldSermale8waypinsolder TE Connectivity 8路 电缆安装 直向 连接器 插头 , 公触点 M12 Fld Ser CONN. Male Pin Sldr |
| 分类 |
商业参数
| 标准包装规格 | 20 | 产品类别 | Circular Metric Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Hand solderable with lead free solder |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| LED | Without | 额定电压 | 500 V |
| 供电电压 | 500 | 连接器阻抗 | M12 |
| 最大额定电流 | 2 A | ||
机械参数
| 外形尺寸(长x宽) | 14.4mm | 包装方式 | Bulk |
| 外壳尺寸 | 14.4mm | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Solder Cup |
| 螺纹尺寸 | M12 | 触头类型 | Pin |
| 安装类型 | Panel Mount | 电缆直径 | 4.5 mm to 6.5 mm |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 紧固类型 | Threaded | 法兰特征 | 不带 |
| 安装样式 | Cable | 触头材料 | Brass |
| 壳体材料 | Nylon | 包装数量 | 20 |
| 面板安装类型 | No | 主要材料 | Connector |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 连接器颜色 | Black |
| 触点数 | 8 | 位数 | 8 |
| 外壳材料及表面处理 | Nylon, Glass Filled | 典型触点布局 | 圆形 |
| 接触镀层厚度 | 5.9µin (0.15µm) | 后壳材料及镀层 | 不带 |
| 第二连接器安装特性 | Reverse | ||
产品信息
| 类型 | Circular | 连接器性别 | RCP |
| 系列 | M12 | 可密封 | 是 |
| 预装 | 是 | 产品子类型 | Connectors |
| 视场 | Yes | ||
环境参数
| 密封等级 | IP 67 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -25°C ~ 90°C | ||
