182645-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port CPC Connectors CONN PLUG CPC 9POS FREE HANGING 9 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector 13-9 PLUG Conn CPC SKT 9 POS Crimp ST Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9PlugFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC PLUG, FREE, SOCKET CONTACT, 9WAY Connector: circular; Series: CPC Series 1; plug; female; PIN:9 Plug CPC 1 9P Male 13, 182645-1, TE Connectivity TE Connectivity 9路 电缆安装 直向 连接器 插座 13-9 CPC PLUG |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | UL列名 | Recognized |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 9 | 最大额定电流 | :13A |
| 绝缘电阻 | :5000Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 密封型 | No | 重量 | 0.008 |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 13 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 3/4 - 20 UNEF-2A | 触点形式 | 9Signal |
| 触点尺寸 | 16 | 触头类型 | Crimp |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Plug for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 封装形式 | size 13 |
| 连接器样式 | Plug | 插入角度 | :13-19 |
| 锁定特性 | threaded joint, internal thread | 本体材料 | :Nylon (Polyamide) |
| 壳体材料 | Thermoplastic | 包装数量 | 50 |
| 连接器 - 电缆 | plug | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 外壳与棱镜材料 | thermoplastic |
| 第一连接器安装类型 | :Free | 第二连接器安装特性 | Standard |
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | CPC | 连接器性别 | PL |
| 系列 | Series 1 | 预加载 | No |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 射频系列/标准 | 182645 | 其他规格 | Without |
| 适用产品/相关产品 | Socket Contacts | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
相关型号
163084-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 18-16AWG CRIMP GOLD Contact female 18-16awg crimp,gold Standard Circular Contacts 062 SOC.ASS. TYP3+ Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.75-1.50² [18.5-15.5] mm [AWG]Insulation Diameter = 2.01 - 2.49 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, 18-16AWG Contactfemale18-16awgcrimp,gold Contact; female; 0.75÷1.5mm2; 16÷18AWG; Type III+; gold plated TE Connectivity Type III 系列 13A 母 压接端接 圆形 连接器 触芯, 18 → 15 AWG，16 AWG 线规格 062 SOC.ASS. TYP3+
182663-1
te connectivity / amp
Connector Accessories Clamp Thermoplastic Black Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 13 CPC cable clamp,Shell size 13 Standard Circular Connector 13 SIZE STD CLAMP Connector Accessories Clamp Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 13Body Style = StraightCable Diameter (Max.) = 11.51 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CIRCULAR CLAMP, SIZE 13, THERMOPLASTIC Cabel hood and fastener; Series: CPC; Case: size 13; UL94V-0 Cap size 13 11.5 mm, 182663-1, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 11.51mm 捆束直径 13 SIZE CPC STD CLAMP
182922-1
te connectivity / amp
Conn CPC PIN 9 POS ST Panel Mount 9 Terminal 1 Port Standard Circular Connector 13-9 RCPT STD SEX CPC Connectors CONN RCPT CPC 9POS PANEL MT 9 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Conn CPC PIN 9 POS ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, CPC, SIZE 13, 9WAY, PIN Housing,rcpt,series1,shellsize13,9W Connector: circular; Series: CPC Series 1; socket; male; PIN:9 Receptacle CPC 1 9P Male 13, 182922-1, TE Connectivity TE Connectivity 9路 面板安装 直向 连接器 插座 , 公触点 CPC SQ.FL.RCPT STD SEX
206403-4
te connectivity / amp

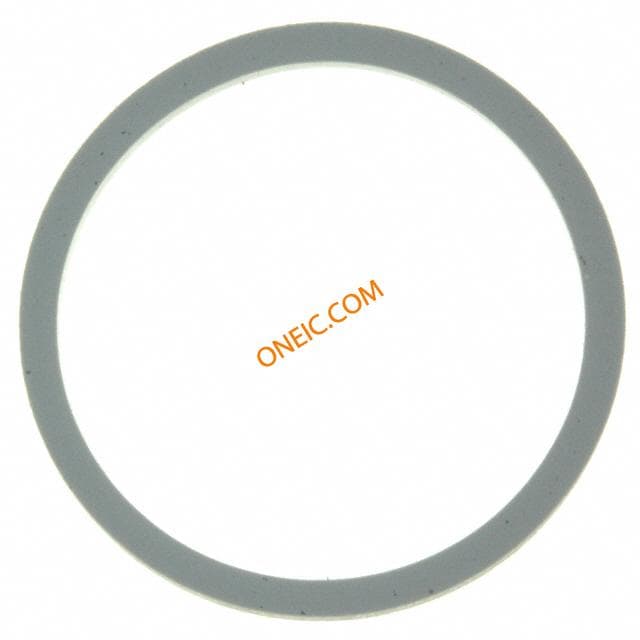

Connector Accessories Peripheral Seal Elastomer CPC Accessories CONN SEAL PERIPHERAL SIZE 13 Standard Circular Connector PERIPHERAL SEAL 13 Connector Accessories Peripheral Seal Elastomer Product Highlights:Peripheral SealShell Size = 13Search Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CPCPERIPHERALSEAL(FORRECEPTACLESONLY),SHELLSZ.13 PERIPHERAL SEAL, SIZE 13
