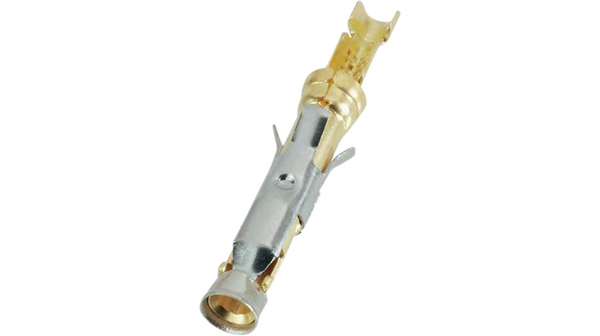

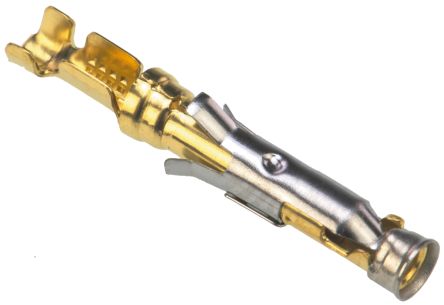

163088-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | TYPE III SOCKET Multimate CONTACT SKT 20-24AWG CRIMP GOLD Type III+ Series Female Circular Connector Contact, Crimp,Wire size 18 to 15AWG Standard Circular Contacts SOCKET 24-20 AWG 163088-2 Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP SOCKET, III+, GOLD 1.57MMSKT24-20AWGAU Contact; female; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated Crimp contact 13 A Female 20...24 AWG, 163088-2, TE Connectivity TE Connectivity Type III+ 系列 母 压接端接 圆形 连接器 触芯, 使用于XII 型系列连接器, 24 → 20 AWG 线规格 LOOSE PC SOCKET TYPEIII+ CONTACT SIZE16 |
| 分类 |
商业参数
| 商标名 | Multimate | 产品类别 | Standard Circular Contacts |
| 标准包装数量 | 3,200 | 工厂包装数量 | 200 |
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
电气参数
| 最大额定电流 | 13 A | 连接器类型 - 电压输入 | CPC Series 1, CPC Series 4 |
机械参数
| 长度 | 21mm | 重量 | 0.000498 |
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Bulk | 导线线规 | 20-24 AWG |
| 端接方式 | Crimp | 触点尺寸 | :16 |
| 安装类型 | Cable Mount | 插针或插孔 | Socket |
| 电缆直径 | 1.15...1.8mm | 连接器类型 | female |
| 接触镀层 | Gold over Nickel | 封装形式 | in bulk |
| 触头材料 | Brass | 包装数量 | 3200 |
| 连接器 - 电缆 | contact | 第一触头极性 | Socket (Female) |
| 接触件端接 | Crimp | 镀层厚度（通用） | 31.5µin (0.80µm) |
| 线规或范围 - AWG | :24AWG | 线规或范围 - mm² | :0.56mm² |
| 触点材料 - 镀层 | gold plated | 外径-未扩张 | :1.8mm |
产品信息
| SPG | 3200 | 类型 | Stamped |
| 连接器性别 | Female | 系列 | Type III+ |
| 适配器系列 | Type III+ | 单元数量 | 1 |
| 适用产品/相关产品 | :Type III+ Series Connectors | ||
