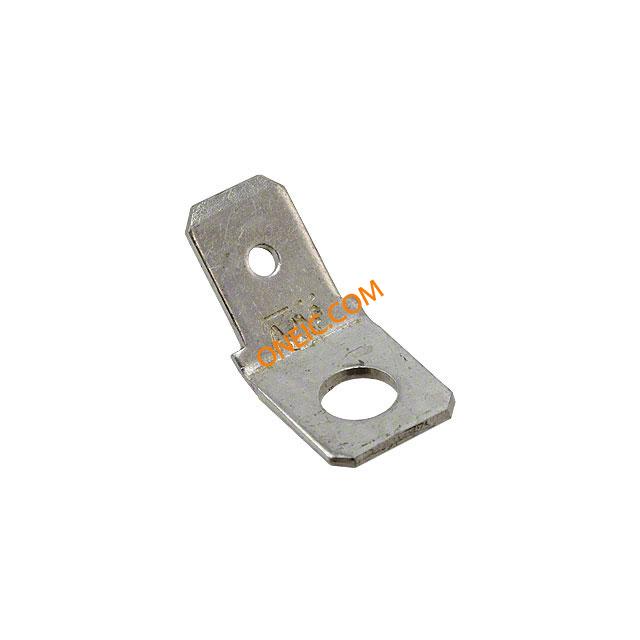

181949-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal M 16.5mm 8mm Tin Loose Piece Terminals FASTON TAB 4.1MM HOLE DIA SPEC Quick Disconnect Tabs, Tab Adapters & Tab Caps TERM TAB 45DEG STUD MT .250 Tab terminal, stud mount,FASTON 250, 45° Quick Disconnect Tabs, Tab Adapters & Tab Caps Product Highlights:TabTab Type = Stud MountConnection Type = SingleTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL, TAB, STUD MOUNT Tabterminal,studmount,FASTON250,45° TE Connectivity FASTON .250 系列 45° 螺栓安装插片接线端子, 6.35 x 0.81mm, 镀锡触芯 FASTON .250 (6.3 MM) 0.8 X 18.80 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Tab Terminals | 标准包装规格 | 5,000 |
| 产品类别 | Terminals | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 表面处理 | Tin | 长度 | 16.5 mm |
| 重量 | 0.01 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 绝缘类型 | Not Insulated | 插片长度 | 0.307" (7.80mm) |
| 端接方式 | Screw, Rivet, Stud | 安装类型 | 45° |
| 螺柱/焊片尺寸 | 6.35 mm x 0.81 mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Angled - 45° | 连接器类型 | :Tab |
| 接触镀层 | Tin | 触头材料 | Brass |
| 绝缘颜色 | :- | 总长度 | 16.5mm |
| 包装数量 | Loose Piece | 绝缘高度 | Without |
| 接触件端接 | Without | 绝缘材料 - 材质 | :- |
| 安装孔直径 | With | ||
产品信息
| 备注 | With hole for Positive Lock Receptacle; With hole | 连接器性别 | Male |
| 系列 | 819 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Tab | 连接类型 | Single |
| 其他规格 | Stud Mount | ||
