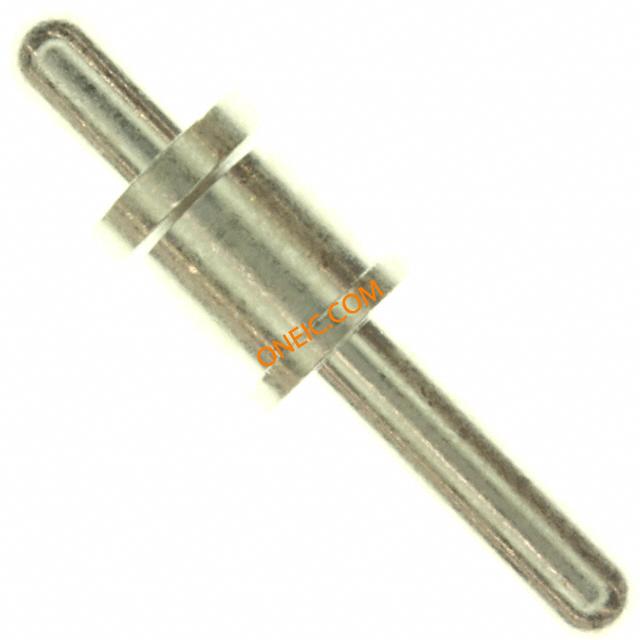

1766262-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Strip High Current ELCON Drawer Connectors CONN PIN #8 PCB SILVER Power to the Board CONTACT PIN #8 PC High Current ELCON Drawer Connectors Product Highlights:ContactContact Size = 8PinTermination Type = PCB (Standard)Not Hot Pluggable CONTACT,PIN,#8,PC |
| 分类 |
商业参数
| 标准包装规格 | 250 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 250 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 最大额定电流 | 75A | ||
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 绝缘类型 | Without | 端接方式 | Crimp |
| 触头类型 | Power | 触点形状 | 直式 |
| 安装类型 | PCB 安装 | 插针或插孔 | Pin |
| 释放力 | 不带 | 端子尺寸 | 8 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 壳体镀层 | Nickel | 插入件材料 | 黄铜 |
| 触头材料 | Brass | 包装数量 | 250 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 接触件端接 | Solder, PCB | 触点镀层 | 银 |
| 接触件表面处理 - 配合 | 银 | 法兰上方插针尺寸 | 3.6 mm [ .142 in ] |
| 接触镀层厚度 | 200µin (5.08µm) | 线规或范围 - AWG | 8 |
| 护套（绝缘）厚度 | 1 µm [ 40 µin ] | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 产品特性 | Standard Not Hot Pluggable | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
