点击放大查看

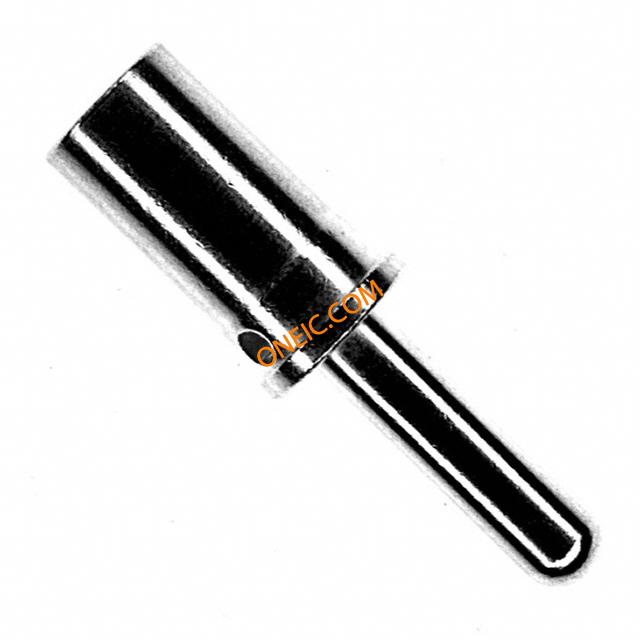

1766192-1
| 制造商 | |
| 描述 | Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors CONTACT PIN #8 High Current ELCON Drawer Connectors CONN PIN #8 CRIMP SILVER Conn Contact M 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Contact PIN Crimp ST Cable Mount Product Highlights:ContactContact Size = 8PinTermination Type = Crimp (Standard)Not Hot Pluggable CONTACT,PIN,#8 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | ||
电气参数
| 最大额定电流 | 75 A | ||
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 绝缘类型 | Without | 导线线规 | 8 AWG |
| 触点形状 | 直式 | 安装类型 | 压接 |
| 插针或插孔 | Pin | 释放力 | 不带 |
| 端子尺寸 | 8 | 连接器类型 | 电线和电缆 |
| 接触镀层 | Silver | 壳体镀层 | Nickel |
| 插入件材料 | 铜 | 触头材料 | Copper |
| 包装数量 | 250 | 端接样式 | Crimp |
| 触点数 | 1 | 接触件端接 | Crimp |
| 触点镀层 | 银 | 接触件表面处理 - 配合 | 银 |
| 法兰上方插针尺寸 | 3.6 mm [ .142 in ] | 接触镀层厚度 | 200µin (5.08µm) |
| 护套（绝缘）厚度 | 1 µm [ 40 µin ] | ||
产品信息
| 类型 | Power | 产品特性 | Standard Not Hot Pluggable |
| 产品子类型 | Contacts | 应用细节 | Power |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
相关型号
1648163-1
te connectivity / amp
Conn Housing PIN 4/24/9 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN PIN MID-DRAWER 8/20/12 PCB Heavy Duty Power Connectors PIN HOUSING CONN SIZE 8 12 20 RECTANGULAR POWER CONNECTOR, PLUG, 37POS
1648162-1
te connectivity / amp
Conn Housing PIN 4/24/9 POS Crimp ST Panel Mount High Power Drawer - Elcon CONN PIN MID-DRAWR 8/20/12 CRIMP Heavy Duty Power Connectors PIN HOUSING CONN SIZE 8 12 20 Conn Housing PIN 4/24/9 POS Crimp ST Panel Mount Product Highlights:HousingContact Size = 8, 12, 20Drawer Style = MiddlePinSize 8 + Size 12 + Size 20 Contact Configuration 261-0006-01100
1648134-1
te connectivity / amp
Conn Housing PL 3/6/14/2 POS Crimp ST Panel Mount High Power Drawer - Elcon 235-0164-01100=SKT,MARKED Heavy Duty Power Connectors 235-0164-01100=SKT MARKED

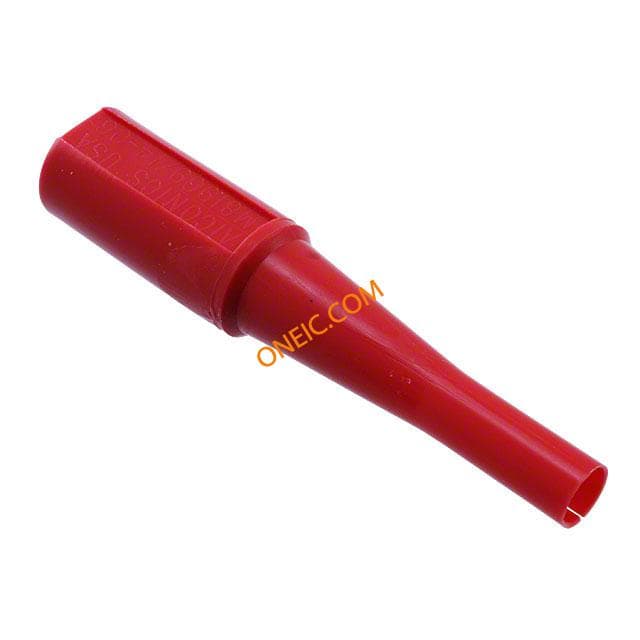

1643914-1
