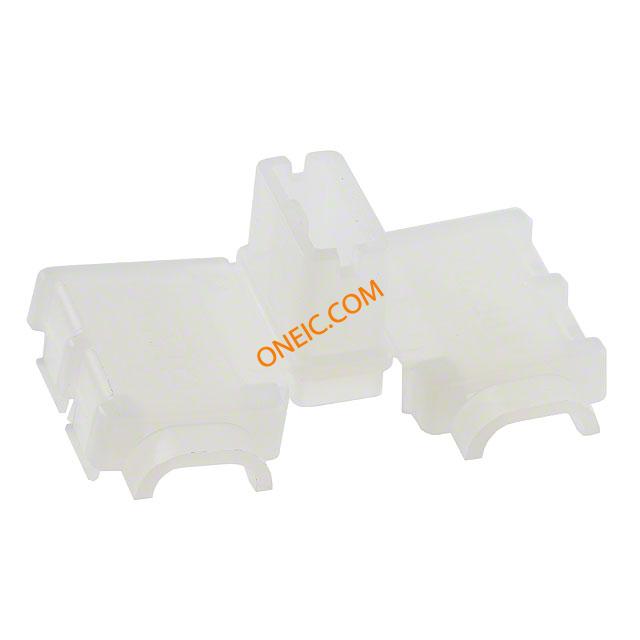

点击放大查看
176497-1
| 制造商 | |
| 描述 | Conn Housing RCP 1 POS Crimp ST Positive Lock Connectors CONN RCPT HOUSING FLAG 1POS .250 Posi Lock .250,One touch sleeve,plug,1w Power to the Board RCPT FLAG 1P .250 Positive Lock Connectors Product Highlights:Receptacle HousingTab Fit = 6.35 mmLine = AMP POSITIVE LOCK EX SeriesReceptacle Style = FlagNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PosiLock.250,Onetouchsleeve,plug,1w 1 Position Positive Lock Receptacle Housing Quick Connect Connector POSITIVE LOCK (PL) .250 (6.3 MM) |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装规格 | 500 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 核心类型 | Open | ||
机械参数
| 颜色 | Natural | 材料（通用） | Nylon |
| 按键颜色 | None | 包装方式 | 袋 |
| 插片宽度 | 6.35 [.250] | 安装类型 | Straight |
| 端子尺寸 | 0.250" (6.35mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | No | 排数 | 1 |
| 连接器样式 | Flag | 总长度 | AMP POSITIVE LOCK EX Series |
| 主要材料 | AutomotiveConnectorAccessory | 端接样式 | 母端 |
| 绝缘直径 | 2.80-4.20 [.110-.165] | 位数 | 1 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | 250 | 编码、键控 | No |
| 制造商全称 | 250EXSeries | 产品子类型 | Receptacle Housing |
| 附件类型 | Sleeve Plug | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects, Flag |
