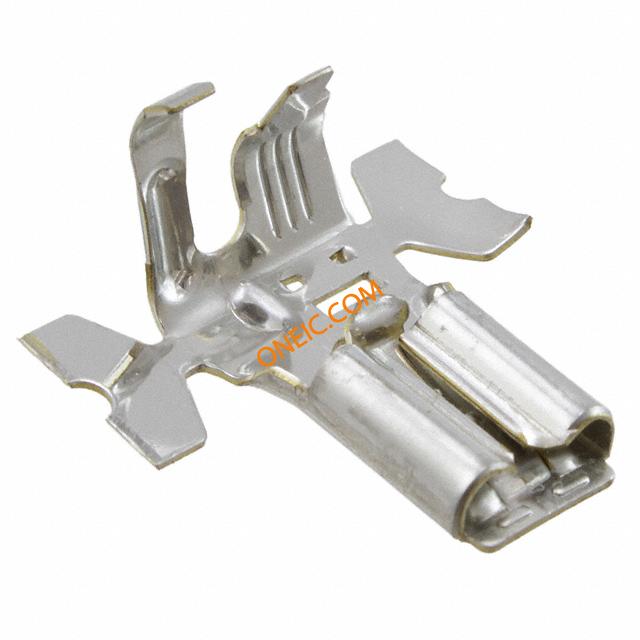

175057-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Reel Automotive Connectors 250 POSITIVE LOCK Positive Lock Connectors CONN LOCK RCPT 18-12AWG TIN Contact SKT Crimp ST Cable Mount Reel Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = AMP POSITIVE LOCK EX SeriesReceptacle Style = FlagWire Range = 0.80-3.00² [18-12] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PL EX 250 REC 18-12AWG PTBR FLAG |
| 分类 |
商业参数
| 产品 | Quick Connect Terminals | 其他名称 | A107104CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 核心类型 | Open | 最大电压 | 250 |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 表面处理 | Pre-Tin | 长度 | 19.3 mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.41 [0.016] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Not Insulated | 插片长度 | 0.307" (7.80mm) |
| 导线线规 | 12-18 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Right |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 电缆材料 | Stranded | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin | 安装样式 | Wire |
| 连接器样式 | Flag | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 总长度 | AMP POSITIVE LOCK EX Series | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | Crimp |
| 适用端子尺寸 | 2.8 – 4.1 mm [ .11 – .161 in ] | 绝缘直径 | 2.80-4.10 [.110-.161] |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 18-12 | 线规或范围 - mm² | 0.80-3.00² [18-12] |
| 外径-未扩张 | 4.1 mm [ .161 in ] | ||
产品信息
| 连接器性别 | SKT | 编码、键控 | No |
| 产品子类型 | Receptacle | ||
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
文档与媒体
相关型号

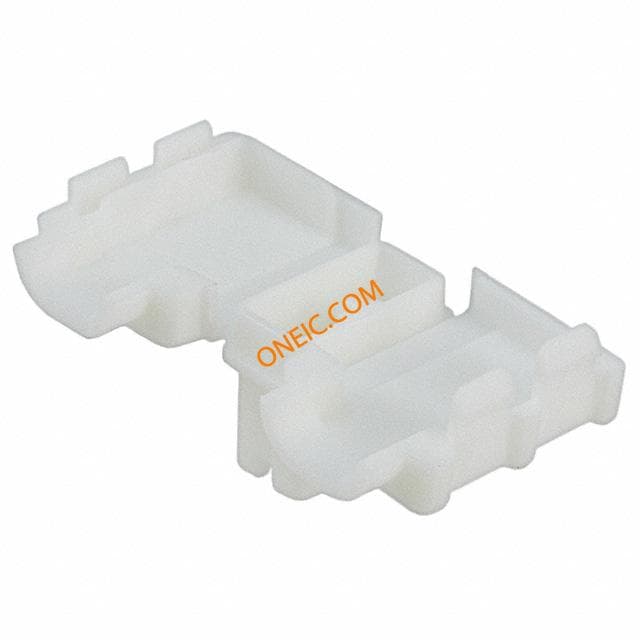

1-176497-1
