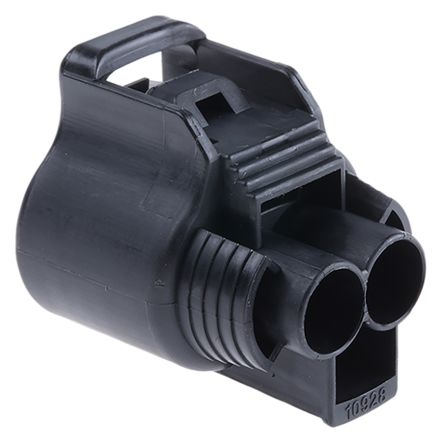

点击放大查看
176146-2
| 制造商 | |
| 描述 | Conn Housing PL 2 POS 7.9mm Crimp ST Cable Mount Econoseal III CONN PLUG HSG 2POS .187 SER BLK Econoseal III 187 2 W black plug housing Automotive Connectors 187 PLUG HSG 2P BLK Econoseal III Product Highlights:HousingHousing Type = PlugColor = BlackNumber of Positions = 2Terminate To Wire EconosealIII1872Wblackplughousing TE Connectivity .187 系列 系列 2路 电缆安装 黑色 公 外壳 187 PLUG HSG 2P BLACK |
| 分类 |
商业参数
| 产品 | Housings | 标准包装规格 | 50 |
| 产品类别 | Automotive Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 13.2 V | 供电电压 | 13 |
| 标称电压 | 12 | 连接器阻抗 | 否 |
| 最大额定电流 | 25 A | ||
机械参数
| 颜色 | Black | 深度 | 31.6mm |
| 间距 | 7.9 mm | 宽度 | 27.5mm |
| 高度 | 27.6mm | 长度 | 31.6 mm [ 1.244 in ] |
| 材料（通用） | Plastic | 锁定类型 | 外壳集成 |
| 包装方式 | Bulk | 出线方向 | 否 |
| 导线线规 | 12-20 AWG | 安装类型 | Straight |
| 端子尺寸 | 0.187" (4.75mm) | 端子类型 | Quick Connect, Disconnect |
| 连接器类型 | 公插 | 排数 | 1 |
| 壳体材料 | PBT | 安装特性 | 否 |
| 包装数量 | 50 | 主要材料 | Connector |
| 端接样式 | Crimp | 连接器颜色 | Black |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 位数 | 2 | 连接器/触点类型 | 否 |
| 接触件表面处理 - 配合 | 是 | 法兰上方插针尺寸 | 4.8 mm [ .189 in ] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | PL |
| 系列 | .187 Series | 极性 | 是 |
| 可密封 | 是 | 可维修 | 是 |
| 制造商全称 | EconosealIII187Series | 应用细节 | Signal |
| 适用产品/相关产品 | 0.187" (4.75mm) Quick Connects | ||
环境参数
| 防护等级 | 其他 | 工作温度 | +105°C |
