点击放大查看
175090-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Econoseal III CONN RCPT 20-16AWG .187 TIN Automotive Connectors .187SEALD REC CONT M Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactReceptacleWire Range = 0.50-1.40² [20-16] mm [AWG]Wire Insulation Diameter = 2.20 - 2.70 mmTerminate To WireSearch Keywords:engine compartments, waterproof, rugged construction, wire seal, tree clip, tree, christmas tree, fixation clip .187 SEALD REC CONT M |
| 分类 |
商业参数
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 3000 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 导体绞线 | 0 – 24 A（低功率） | ||
机械参数
| 腔体A | 14 | 锁定类型 | 无尖刃主体 |
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 0.187" (4.75mm) |
| 电缆类型 | 铜 | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.315" (8.00mm) | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 安装类型 | Free Hanging (In-Line) | 端子类型 | Standard |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 连接器样式 | 180° | 触头材料 | Brass |
| 总长度 | 0.768" (19.50mm) | 包装数量 | 3000 |
| 端接排数 | 压接 | 绝缘直径 | 2 – 2.7 mm [ .078 – .102 in ] |
| 接触件表面处理 - 配合 | 锡 (Sn) | 法兰上方插针尺寸 | 4.8 mm [ .189 in ] |
产品信息
| 连接器性别 | SKT | 产品特性 | Serrated Termination |
| 可密封 | 是 | ||
环境参数
| 防护等级 | 单线密封 (SWS) | 工作温度 | -22 – 221 |
文档与媒体
相关型号
176146-2
te connectivity / amp
Conn Housing PL 2 POS 7.9mm Crimp ST Cable Mount Econoseal III CONN PLUG HSG 2POS .187 SER BLK Econoseal III 187 2 W black plug housing Automotive Connectors 187 PLUG HSG 2P BLK Econoseal III Product Highlights:HousingHousing Type = PlugColor = BlackNumber of Positions = 2Terminate To Wire EconosealIII1872Wblackplughousing TE Connectivity .187 系列 系列 2路 电缆安装 黑色 公 外壳 187 PLUG HSG 2P BLACK

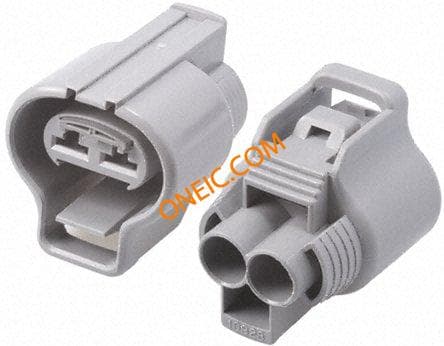

6-176146-6
