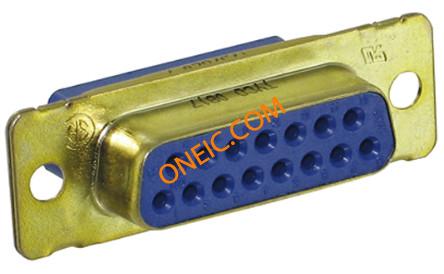

点击放大查看
1757820-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors 15 POS RECPT, CRIMP STD DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE Series 109 Receptacle 15P Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 15Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 15POS, STEEL CONN D-SUB RECEPT 15POS CRIMP Conn;D-Sub;CableSocket;15Pos;STR;109Series;Crimp;20AWG AMPLIMITE,ASY,RCPT,STD,109,ZN,2,CT |
| 分类 |
商业参数
| 零件号别名 | M24308 M24308/2-2 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 抗辐射加固 | No |
| 资质认证 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器阻抗 | No | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Blue | 深度 | 16.84 mm |
| 高度 | 12.93 mm | 重量 | 0.014 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 外壳尺寸 | 2 | 导线线规 | 20 |
| 端接方式 | Crimp | 触点尺寸 | 20 |
| 触头类型 | Crimp Snap-in | 非磁性 | No |
| 安装类型 | Straight | 外壳镀层 | Zinc |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 本体材料 | :Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 39.52 mm |
| 主要材料 | D-Subminiature | 端接样式 | Crimp |
| 触点数 | 15 | 位数 | 15 |
| 外壳尺寸-插件 | :2 | 衬套/护套类型 | No |
| 安装孔直径 | 3.05 [.120] | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 备注 | Size 20 contacts supplied with connectors are loose piece. | 类型 | D-Subminiature |
| 连接器性别 | Female | 系列 | 109 |
| 密度 | Standard | 插座类型 | With |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 Port |
| 设备部件号 | M24308/2-2 | 适用产品/相关产品 | :Size 20 Crimp Snap-in Contacts |
环境参数
| 工作温度 | -55C to 125C | ||
