点击放大查看

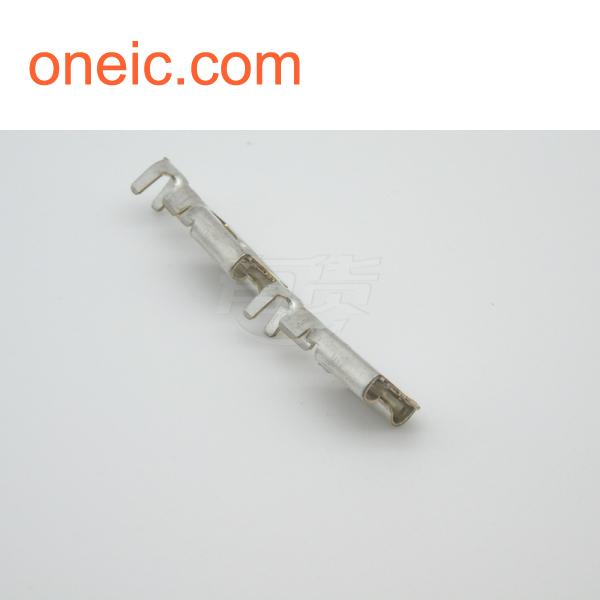

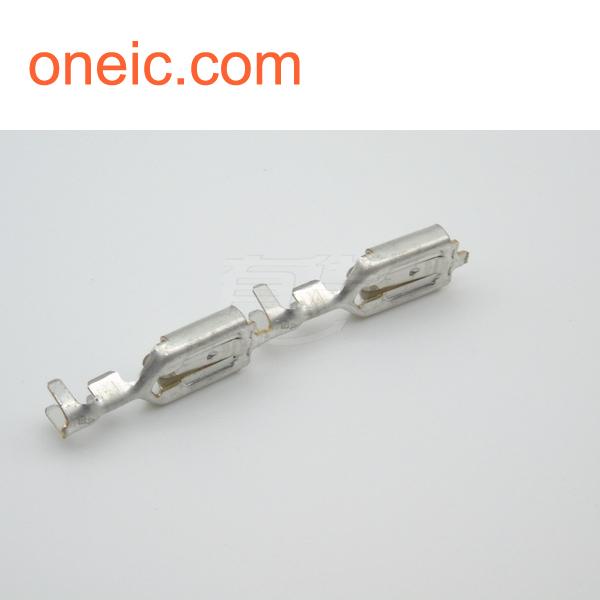

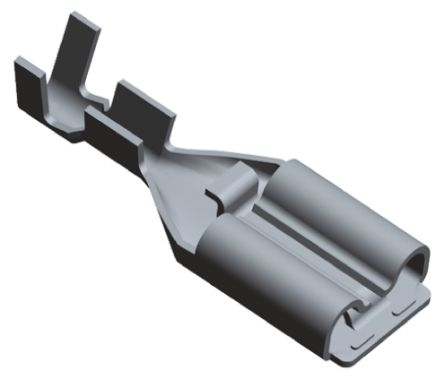

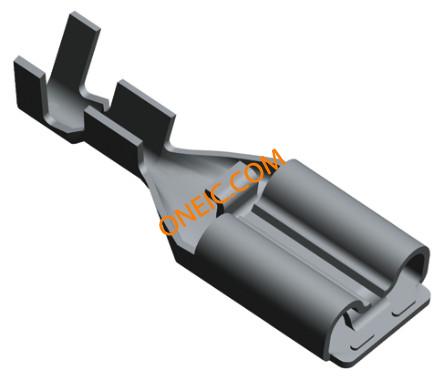

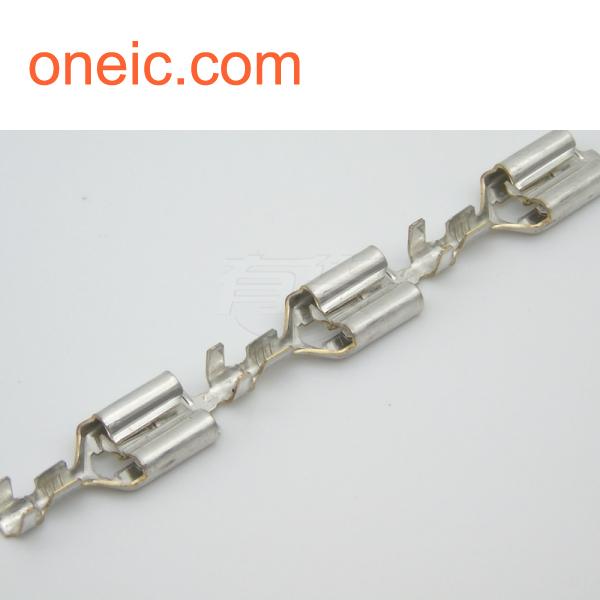

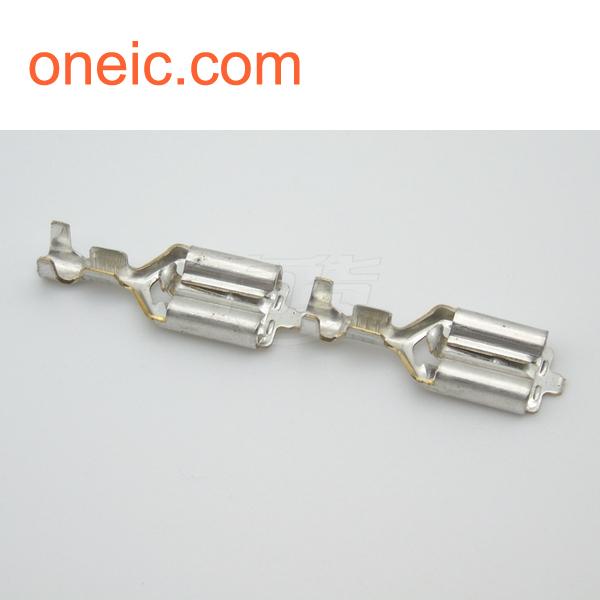

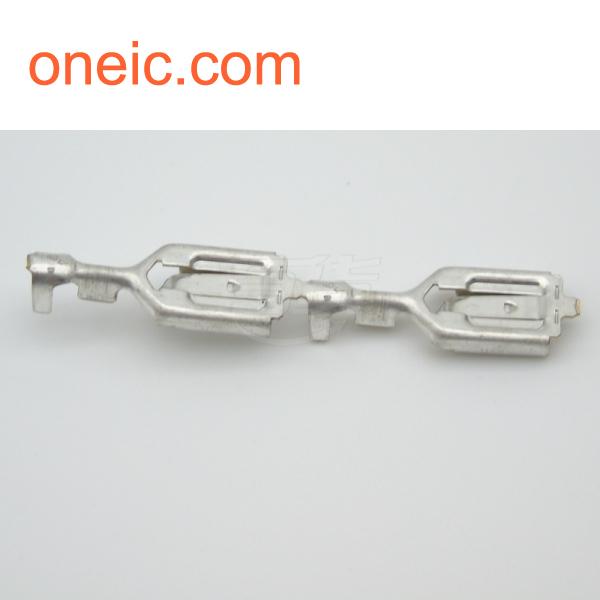

175020-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 22.2mm 7.6mm Pre-Tin Strip Positive Lock Connectors CONN RCPT 22-18AWG .250 TAB TIN Receptacle contact, Positive Lock (REEL) Positive lock,receptacle,22-18awg,6.35mm Automotive Connectors 250 POSITIVE REC EX MK-2 Positive Lock Connectors Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmLine = AMP POSITIVE LOCK EX SeriesReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, Positivelock,receptacle,22-18awg,6.35mm TE Connectivity Positive Lock .250 EX II 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 PL EX MKII 250 REC 22-18AWG PTBR |
| 分类 |
商业参数
| 产品 | Terminals | 其他名称 | A103994CT |
| 标准包装规格 | 5,000 | 标准包装数量 | 15,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 核心类型 | Open | 最大电压 | 250 |
| 开关功能 | 快速断开, 快速断开 | ||
机械参数
| 表面处理 | Pre-Tin | 长度 | 21.2mm |
| 材料（通用） | Brass | 按键颜色 | None |
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 厚度 | 0.41 [0.016] | 电缆类型 | 分离式导线 |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.307" (7.80mm) |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 重量（g） | 13.2 | 安装类型 | Free Hanging (In-Line) |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆直径 | 0.9mm² | 电缆材料 | Stranded |
| 连接器类型 | Power Connector | 接触镀层 | Tin |
| 安装样式 | Wire | 封装形式 | 51*28*29 |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 总长度 | AMP POSITIVE LOCK EX Series | 包装数量 | Strip |
| 导线端接方式 | No | 端接样式 | 母端 |
| 适用端子尺寸 | 1.5 – 3.1 mm [ .059 – .122 in ] | 绝缘直径 | 1.50-3.10 [.059-.122] |
| 绝缘材料 - 类型 | No | 总厚度 | .41 mm [ .016 in ] |
| 焊盘布局尺寸 | 6.35 x 0.81mm | 法兰上方插针尺寸 | 6.35 mm [ .25 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - AWG | 18AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | 外径-未扩张 | 3.1 mm [ .122 in ] |
产品信息
| 名称 | 端子 | 单位 | PCS |
| 连接器性别 | Female | 系列 | 250 |
| 数量 | 15000.0 | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | 250EXIISeries |
| 产品子类型 | Receptacle | 制造国家 | 中国 |
| 设备部件号 | 175020-1.pdf | 最小起订量 | 1 |
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
