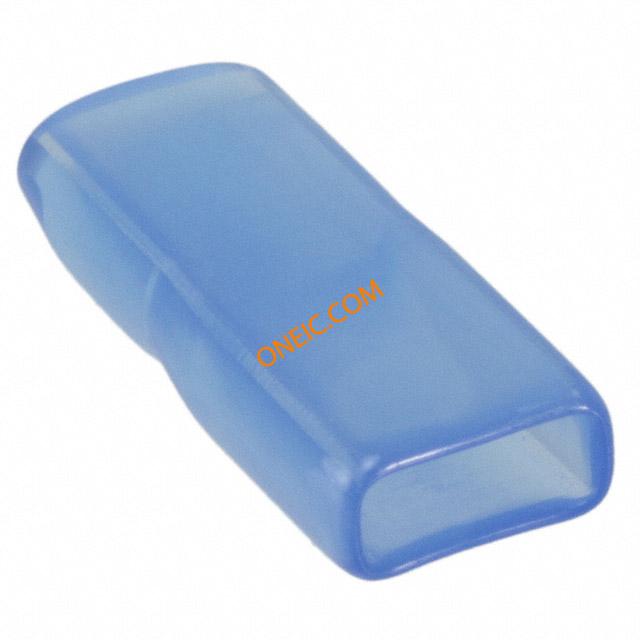

174817-1
| 制造商 | |
| 描述 | Connector Accessories Insulation Sleeve Straight Soft Polyvinyl Chloride Blue Headers & Wire Housings SLEEVE 270250 Positive Lock Connectors CONN RCPT HSG 1POS .250 BLUE Pos Lock, Insulation sleeve, 4.75mm, Blu Connector Accessories Insulation Sleeve Straight Soft Polyvinyl Chloride Blue Product Highlights:Insulation SleeveTab Fit = 4.75 mmLine = AMP POSITIVE LOCK EX SeriesReceptacle Style = StraightNumber of Positions = 1Search Keywords:UL-310, terminals and splices, Quick Connect/Disconnect Tabs and Receptacles, Lighting Interconnection Products, DIN 46244, Series 110, PosiLock187InsulationSleeve,1way TE Connectivity 26mm 压接端子套管 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-2 |
机械参数
| 颜色 | Blue | 长度 | 26 mm |
| 材料（通用） | Soft PVC | 按键颜色 | None |
| 包装方式 | Bulk | 插片宽度 | 4.75 [.187] |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器样式 | Straight |
| 壳体材料 | Soft Vinyl Chloride | 总长度 | AMP POSITIVE LOCK EX Series |
| 主要材料 | AutomotiveConnectorAccessory | 触点数 | 1 |
| 绝缘直径 | 1.50-3.02 [.059-.119], 2.20-3.40 [.086-.134], 3.00-5.10 [.118-.200] | 位数 | 1 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Insulation Sleeve |
| 样式 | Sleeve | 连接器性别 | Female, Receptacle |
| 系列 | 250 | 编码、键控 | No |
| 制造商全称 | 250EXSeries | 产品子类型 | Accessories |
| 附件类型 | Insulation Sleeve | 射频系列/标准 | 174817 |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
