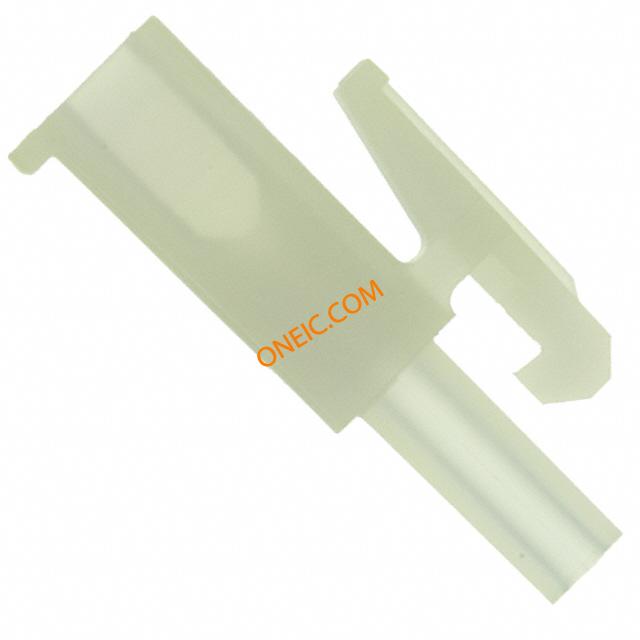

172335-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 1 POS Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 1POS MINI-U MATE-N-L Pin & Socket Connectors 1 POS PLUG MINI Conn Housing PL 1 POS Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 1In-Line Contact LayoutMount = Free HangingSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING MINI UMNL PLUG HOUSING 1P |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 供电电压 | 600 | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Natural | 间距 | :4.14mm |
| 重量 | 0.00068 | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | 16-30 AWG |
| 触头类型 | Male or Female | 基体材料 | :Nylon |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 线缆终端 | :Free Hanging | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 触点数 | 1 |
| 接触件端接 | Crimp | 位数 | 1 |
| 典型触点布局 | In-Line | 接触镀层厚度 | 0.99 [0.039] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | :Mini-Universal MATE-N-LOK |
| 产品子类型 | Housing | 模块/板类型 | No |
| 电路数 | 1 | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors |
