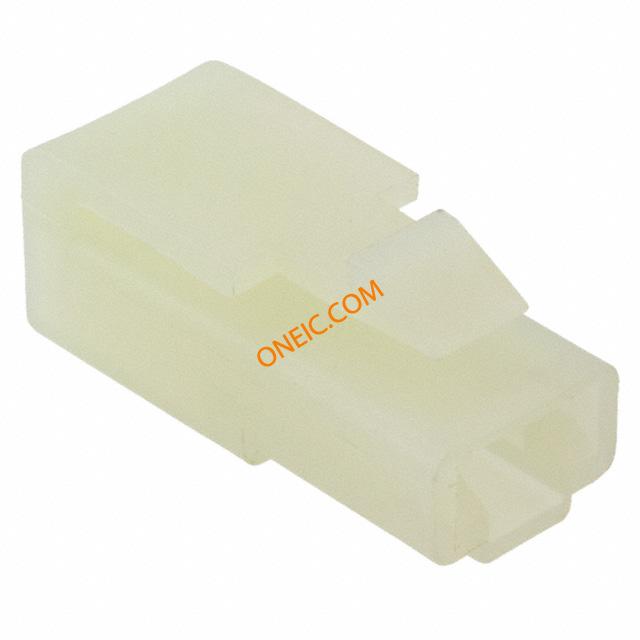

172128-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 1 POS Crimp ST Cable Mount Headers & Wire Housings PLUG 1P FREE HANGING Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN HOUS PLUG 1POS FREE HANGING Housing, plug, 1 way, 250 lance, natural Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) Product Highlights:HousingNumber of Positions = 1PlugMount = Free HangingColor = NaturalSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, Housing,plug,1way,250lance,natural TE Connectivity FASTON .250 系列 1 触点 尼龙 压接外罩 FF 250 REC HSG 1P NYLON NAT |
| 分类 |
商业参数
| 标准包装规格 | 100 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-2 |
电气参数
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Natural | 长度 | 25mm |
| 材料（通用） | Nylon | 包装方式 | Bulk |
| 外壳样式 | With | 基体材料 | Nylon |
| 安装类型 | Straight | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Tab |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Receptacle Housing | 连接器用途 | Wire/Cable |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 主要材料 | 尼龙 | 连接器颜色 | Natural |
| 触点数 | 1 | 位数 | 1 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | PL |
| 系列 | FASTON .250 | 产品子类型 | Housing |
| 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects | ||
