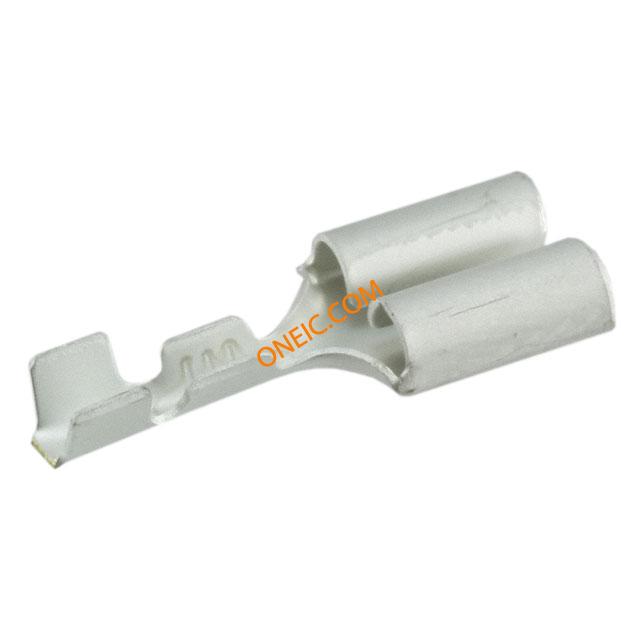

170384-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact F 1 POS Crimp Cable Mount Strip Tab & Receptacle Connectors (AMP 250 Series Housing Lance Connectors) CONN SOCKET 22-20AWG TIN CRIMP Headers & Wire Housings 250 SERIES REC W/O Contact F 1 POS Crimp Cable Mount Strip Product Highlights:ContactReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.50 - 2.20 mmSearch Keywords:Quick Connect, Quick Disconnect, terminals and splices, wire to wire, WITHOUT LATCH .250 REC 22-20 AWG TPBR |
| 分类 |
商业参数
| 其他名称 | A100478CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 核心类型 | Open | 最大电压 | 250 |
| 最大频率 | Single | 开关功能 | 快速连接 |
机械参数
| 包装方式 | Tape & Reel (TR) | 插片宽度 | 0.250" (6.35mm) |
| 电缆类型 | 分离式导线 | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.307" (7.80mm) | 导线线规 | 20-22 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 释放力 | .5 – 4 |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin |
| 连接器用途 | Wire & Cable | 插入件材料 | 黄铜 |
| 插入力 | 普通 | 操作力 | 4.9 – 39.2 |
| 触头材料 | Brass | 总长度 | 0.756" (19.20mm) |
| 包装数量 | Strip | 导线端接方式 | No |
| 端接样式 | 母端 | 第一触头极性 | Socket (Female) |
| 适用端子尺寸 | 1.5 – 2.2 mm [ .059 – .086 in ] | 绝缘直径 | 1.50 â 2.20 [0.059 â 0.087] |
| 绝缘材料 - 类型 | No | 总厚度 | .81 mm [ .032 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .62 mm [ .024 in ] |
| 线规或范围 - mm² | 0.30-0.60² [22-20] | 外径-未扩张 | 2.2 mm [ .086 in ] |
产品信息
| 连接器性别 | SKT | 产品子类型 | Contact |
环境参数
| 工作温度 | -30 – 105 | ||
