点击放大查看

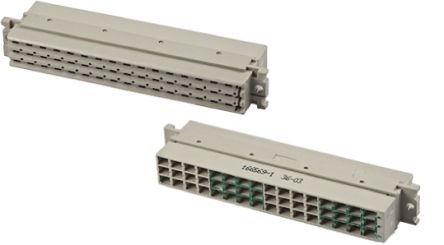

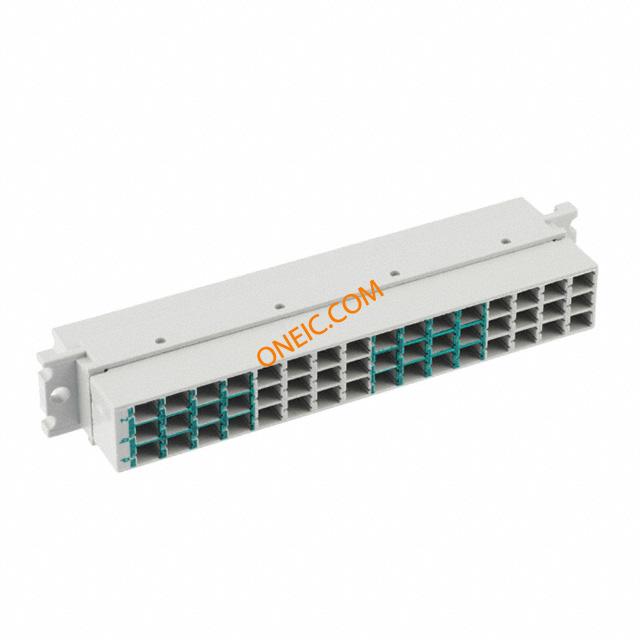

166569-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 48 POS 5.08mm Crimp ST Panel Mount Eurocard Type F & G CONN RECEPT 48 POS DIN Housing FH 48 way 3 row Rec Eurocard Conn Housing RCP 48 POS 5.08mm Crimp ST Panel Mount Product Highlights:HousingMating Type = ReceptacleNumber of Positions = 48Number of Rows = 3Right Angle Mount AngleSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, backplane, midplane, two piece, IEC 603-2, power, DIN 41612 HOUSINGFH48WAY3ROW TE Connectivity Eurocard 系列 48 路 3.81 mm, 5.08 mm 节距, F型, 3 行 N/A 直向 DIN 41612 插座, 嵌入式端接 IEC FEMALE HSG.ASSY |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | No | 额定电压 | 250 V ac |
| 接触电阻 | 15mΩ | ||
机械参数
| 颜色 | Gray | 深度 | 23.2 mm |
| 间距 | 5.08 mm | 高度 | 14.7 mm |
| 长度 | 90 | 包装方式 | Bulk |
| 遮蔽类型 | No | 方向 | 直 |
| 端接方式 | Snap-In | 断路器类型 | No |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 连接器类型 | Housing for Female Sockets | 排数 | 3 |
| 连接器样式 | DIN 41612, Type F | 连接器用途 | Receptacle |
| 壳体材料 | Noryl | 总长度 | 95 mm |
| 面板安装类型 | Without | 端接排数 | a/b/c |
| 先合后断 | No | 端接样式 | 插座 |
| 触点数 | 48 | 位数 | 48 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Eurocard |
| 产品子类型 | Type F | 列数 | 16 |
环境参数
| 工作温度 | +125°C | ||
