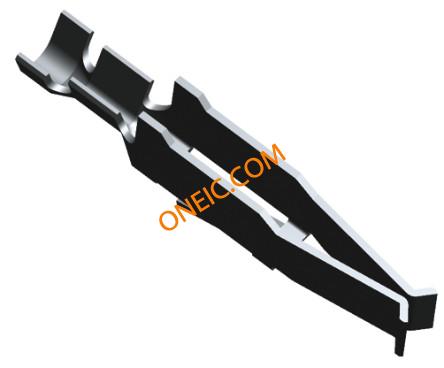

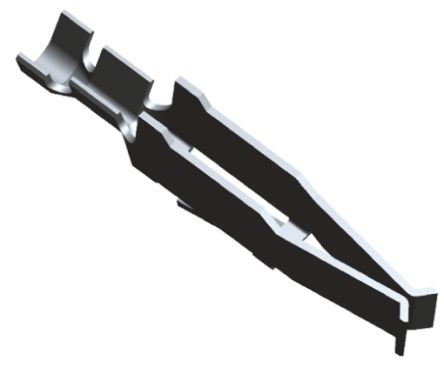

166460-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Eurocard and RS-System Contacts CONN SOCKET 20-26AWG SNAP-IN Contact Socket Crimp Eurocard DIN 41612 Connectors SNAP IN SOCKET 26-20 20000 166460-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:Contact Type = Snap-InSocketStraight Contact ShapeTerminate To CableWire Range = 0.12-0.50² [26-20] mm [AWG]Search Keywords:DIN 41612, board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, TE Connectivity Eurocard 系列 母 压接接线端子, 压接, 镀金镀镍触点 IEC-F F.CONT.COSI |
| 分类 |
商业参数
| 产品类别 | DIN 41612 Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 250 V ac | 连接器阻抗 | 压接 |
| 最大额定电流 | 6A | ||
机械参数
| 间距 | 5.08mm | 长度 | 22.2 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 20-26 AWG |
| 端接方式 | Crimp | 触点形式 | Straight |
| 触头类型 | Signal | 触点形状 | Straight |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 电缆直径 | 0.5mm² | 连接器类型 | Connector Backplane |
| 接触镀层 | Gold | 排数 | 1 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 包装数量 | Strip | 主要材料 | 直式 |
| 端接排数 | 压接 | 先合后断 | No |
| 端接样式 | Crimp | 第一触头极性 | Female |
| 触点数 | 1 | 接触件端接 | Crimp Snap-In |
| 绝缘直径 | 1.10 â 1.80 [0.043 â 0.071] | 兼容外壳尺寸（如TM-700等） | 类型 F 垂直壳体 |
| 典型触点布局 | Snap-In | 接触镀层厚度 | 16µin (0.40µm) |
| 线规或范围 - AWG | 20AWG | 线规或范围 - mm² | 0.12-0.50² [26-20] |
产品信息
| 类型 | Signal | 等级 | II |
| 连接器性别 | SKT | 系列 | Eurocard |
| 产品子类型 | Contacts | 连接类型 | Cable |
| 适用产品/相关产品 | Type F Vertical Housing | ||
文档与媒体
相关型号
1-166569-0
te connectivity / amp
Conn Housing RCP 48 POS 5.08mm Crimp ST Panel Mount Eurocard Type F & G IEC FEMALE HSG.ASSY DIN 41612 Connectors IEC FEMALE HSG. ASSY Conn Housing RCP 48 POS 5.08mm Crimp ST Panel Mount Product Highlights:HousingMating Type = ReceptacleNumber of Positions = 48Number of Rows = 3Vertical Mount AngleSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, backplane, midplane, two piece, IEC 603-2, power, DIN 41612
