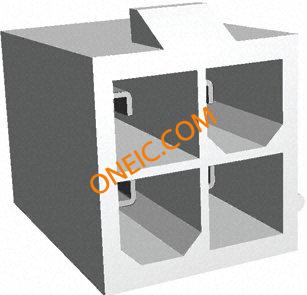

1586495-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 4POS VERT PCB TIN TE Connectivity AMP DUAC Series 4.2mm Pitch 4 Way Straight Heavy Duty Power Connector, Solder Termination, 9A 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HeaderAMP-DUAC/PL0 Power Positions4 Signal PositionsPCB Mount Angle = VerticalSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power AMP-DUACHeader,4waypincontacts 04P DUAC 94V0 W0/PEG WO/DH LF |
| 分类 |
商业参数
| 标准包装规格 | 348 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | UL阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V ac | 供电电压 | 600 |
| 最大额定电流 | 9A | ||
机械参数
| 颜色 | White | 间距 | 4.2 mm |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | 不带 | 引脚数 | 4 |
| 排数 | 2 | 触头材料 | Copper Alloy |
| 壳体材料 | 尼龙 GF | 包装数量 | 348 |
| 面板安装类型 | 通孔 - 焊接 | 主要材料 | Power |
| 端接样式 | 插针 | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | 插头 |
| 接触件表面处理 - 配合 | 锡 | 接触镀层厚度 | 118.1µin (3.00µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | AMP DUAC | 制造商全称 | AMP-DUAC |
| 产品子类型 | 公端 | 应用细节 | Power |
| 加载位置数 | All | 转换前位置数 | None |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
