点击放大查看

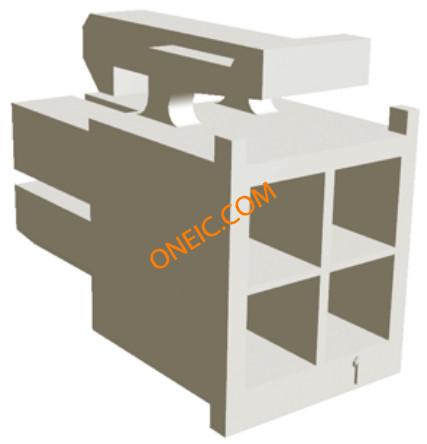

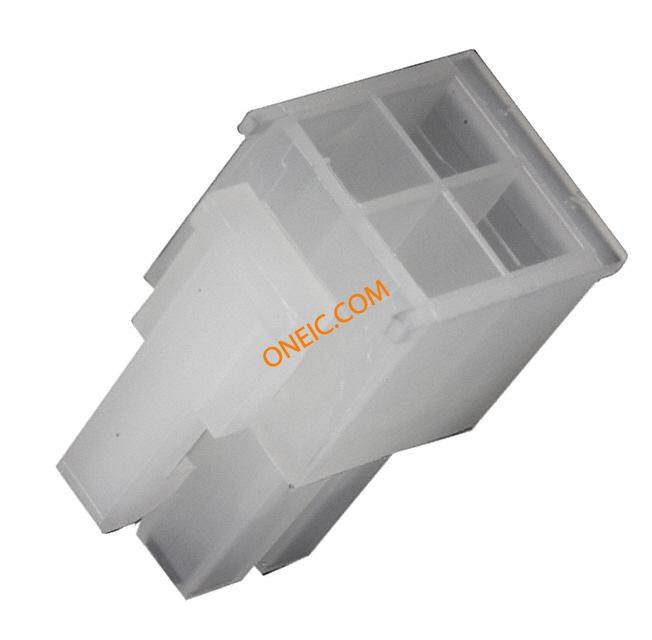

106527-4

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 4POS W/POSTIVE LOCK Housing 4 way receptacle Duac Headers & Wire Housings 4-POS DUAC RECPT Conn Housing RCP 4 POS 4.2mm ST Conn Housing RCP 4 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 4UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power Housing4wayreceptacleDuac AMP-DUAC?4 Position Strain Relief Female Receptacle Housing Connector TE Connectivity AMP-DUAC 系列 2 行 4.2mm 节距 4 路直母电缆安装压接连接器外壳 04P DUAC REC HSG
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	1500

合规参数

RoHS	Contains lead / RoHS non-compliant	零件状态	E28476
标准编号	CSA, UL	UL阻燃等级	UL 94V-2
认证机构标志	是

电气参数

额定电压	600 V	供电电压	600
中心频率	带有	最大额定电流	9 A
连接器类型 - 电压输入	Crimp

机械参数

颜色	Natural	深度	11.7mm
间距	4.2 mm	宽度	18.8mm
高度	18.8 mm [ .74 in ]	长度	9.7mm
密封型	Not Sealed	包装方式	Bulk
导线线规	18-26 AWG	方向	直
排间距	0.165" (4.20mm)	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.165" (4.20mm)
安装类型	Straight	连接器类型	Receptacle
接触镀层	Without	紧固类型	Latch Lock
排数	2	封装形式	Receptacle
插入力	4	壳体材料	Nylon
包装数量	1500	端接样式	插座
第一触头极性	Socket (Female)	触点数	4
接触件端接	Crimp	位数	4

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMP-DUAC
产品子类型	护套	输出配置	Free Hanging (In-Line)
适用产品/相关产品	PCB Connector

环境参数

测试温度

标准件 - 非灼热丝

工作温度

-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档

106527-4?RQPN=106527-4

相关型号

1-794303-2

TE Connectivity / AMP

Pin & Socket Connectors AMP/DUAC PWR CONN 04P ASSY LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 4POS VERT PCB GOLD

¥4.4676

详情

1-794303-1

te connectivity / amp

Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER VERT 4POS TIN PCB Pin & Socket Connectors HDR VERT 4 POS TIN DUAC Conn Power HDR 4 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderAMP-DUAC0 Power Positions4 Signal PositionsPCB Mount Angle = VerticalSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥2.1080

详情

1586041-4

te connectivity / amp

Conn Wire to Board HDR 4 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 4POS R/A W/O PEGS TE Connectivity PE Series 4.2mm Pitch 4 Way 2 Row Right Angle PCB Header, Solder Termination, 9A Pin & Socket Connectors RA HDR W/O PEGS 4P Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Conn Power HDR 4 POS 4.2mm Solder RA Thru-Hole 4 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 4UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP Connector;PinHeader;UL94V-2 Male connector 90° Pitch4.2 mm Poles 2 x 2 VAL-U-LOK, 1586041-4, TE Connectivity TE Connectivity VAL-U-LOK 系列 4.2mm节距 4路 (2排) 直角 PCB 针座, 焊接端接, 9A , 通孔 4P VAL-U-LOK R/A HDR V2

¥1.4076

详情

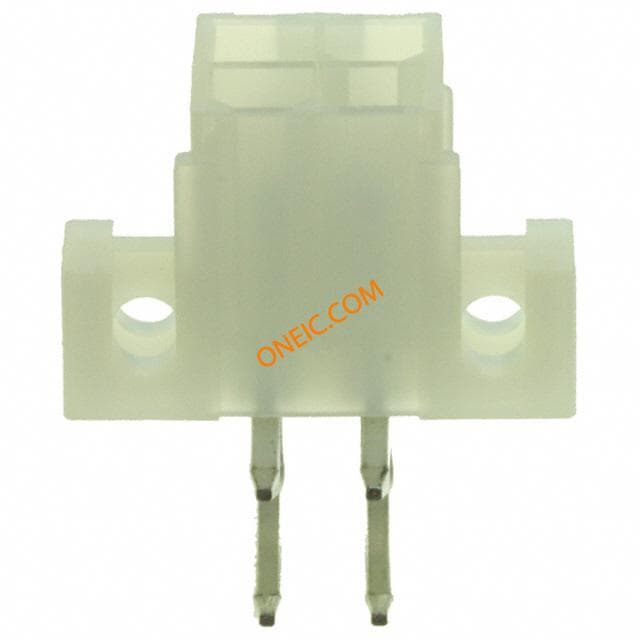

1586043-4
