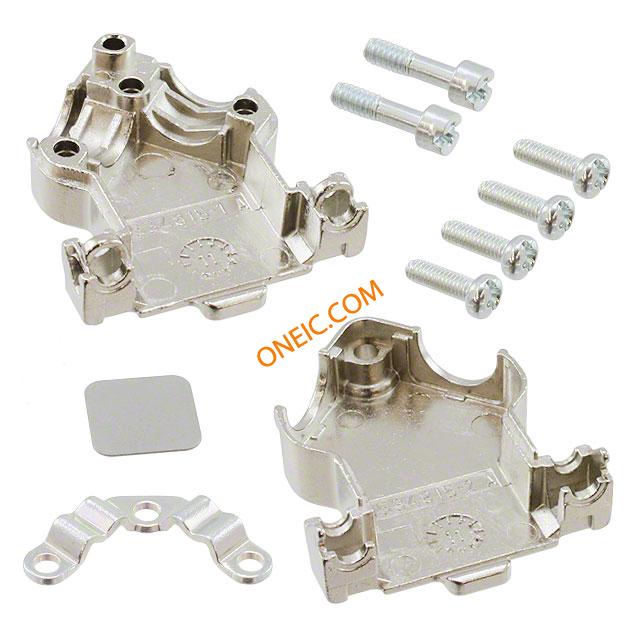

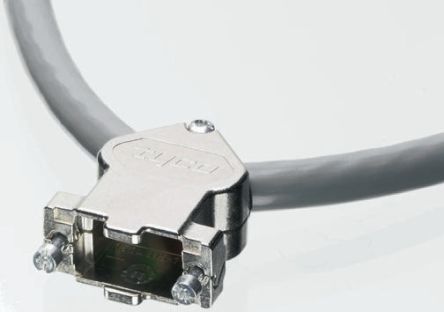

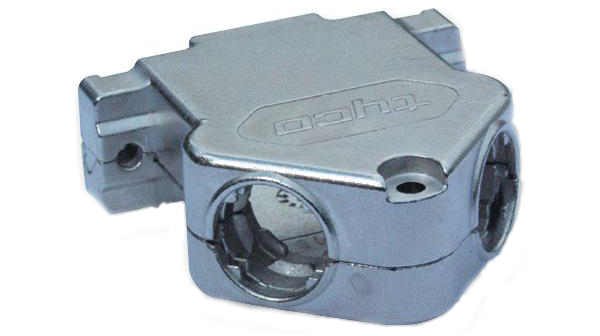

1534805-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Backshell With Cable Clamp 9 POS Box D-Sub Backshells BACKSHELL KIT 9P Cable Clamps CONN HD20 BACKSHELL 9POS 45DEG 9way dual cable entry diecast back shell Connector Accessories Backshell With Cable Clamp 9 POS Box Product Highlights:Backshell/Cable ClampCable Clamp Type = Single or Dual Cable Entry45° Cable Exit AngleCable Insulation Diameter = 4.80 - 9.00 mmNumber of Positions = 9Search Keywords:AMPLIMITE, Subminiature D, input/output, box to box, d-sub, d sub, dsub BACKSHELL, DUAL ENTRY, 9WAY D-Sub metal hood 9P, 1534805-1, TE Connectivity TE Connectivity 9 路 斜角 银色 GD-Zn D-sub 连接器底壳 HD20 COVER KIT 9POS WITH CABLE |
| 分类 |
商业参数
| 产品类别 | D-Sub Backshells | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 深度 | 38 mm | 宽度 | :31.1mm |
| 高度 | 15 mm | 重量 | 0.05 |
| 材料（通用） | Metal, Gadolinium - Zinc | 包装方式 | Box |
| 屏蔽 | Shielded | 出线方向 | 45° |
| 电缆类型 | Round | 外壳尺寸 | 1 |
| 屏蔽类型 | Yes | 螺纹尺寸 | 4-40 |
| 安装类型 | Angled | 外壳镀层 | None |
| 电缆直径 | 4.8 mm to 9 mm | 电缆端类型 | 45 deg |
| 电缆材料 | Die Cast | 外壳材料（壳体） | Zinc |
| 本体材料 | :Metal | 螺钉头类型 | Phillips |
| 板侧间距 | Without | 壳体材料 | GD-Zn |
| 总长度 | 31.1 mm | 包装数量 | Individual Kit |
| 电缆端接方式 | Single or Dual Cable Entry | 连接器颜色 | :Silver |
| 绝缘直径 | 4.80 â 9.00 [0.189 â 0.354] | 位数 | 9 |
| 衬套/护套类型 | Without | 电缆对数 | 2 |
| 控制侧电缆固定器 | With | ||
产品信息
| 类型 | Shell | 系列 | :AMPLIMITE |
| 产品特性 | Assembly Kit, Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Cable Clamp |
| 产品子类型 | Backshell/Cable Clamp | 附件类型 | Two Piece Backshell |
| 射频系列/标准 | 1534805 | ||
