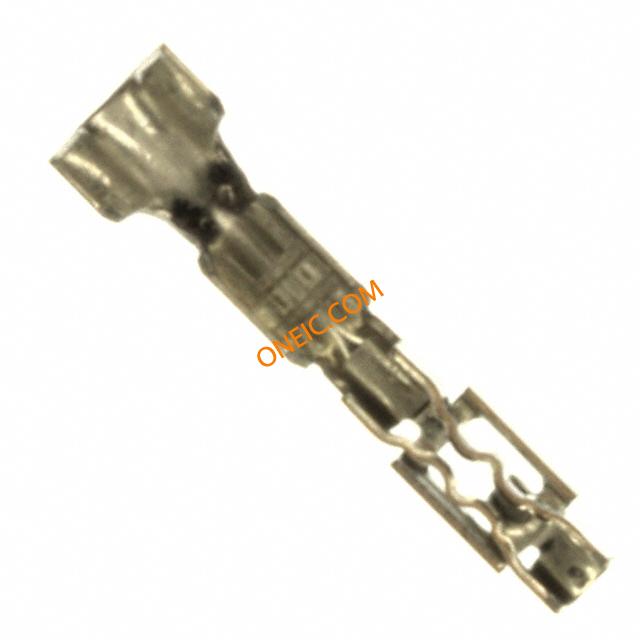

1445336-1

点击放大查看

1445336-1

制造商
TE Connectivity Ltd.
描述
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SCKT 26-22AWG TIN CST100 II Crimp contact 22-26 awg CST-100 II Pin & Socket Connectors TIN CONTACT 22-16AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:CST-100 II ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area PlatingWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 II HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, MTA, 26-22AWG CST-100IICONTACTS;LP Crimp socket 26...22 AWG, 1445336-1, TE Connectivity TE Connectivity CST-100 II 系列 母 压接接线端子, 压接, 镀锡触点 LOOSE PC CONTACT TIN PLATED
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant

电气参数

接触电阻10mΩ最大额定电流4 A
最小供电电压250VAC

机械参数

深度2.67 mm间距Not Required mm
重量0.001包装方式Bulk
导线线规0.12-0.4² [26-22]端接方式Crimp
触点尺寸:22触头类型Signal
外壳颜色Not Required安装类型Straight
插针或插孔Socket连接器类型Connector Headers and PCB Receptacles
接触镀层Pre-Tin安装样式Cable
触头材料Phosphor Bronze壳体材料Not Required
总长度11.18 mm包装数量Loose Piece
端接样式Crimp第一触头极性Socket (Female)
触点数Not Required接触件端接Crimp
绝缘直径0.89 – 1.65 [0.035 – 0.065]线规或范围 - AWG:26AWG
线规或范围 - mm²:0.4mm²外径-未扩张:1.65mm

产品信息

备注Not for use in housing Part No. 770602.类型Contact
连接器性别SKT系列MTA-100
CAD图纸3D CAD Model产品子类型CST-100 II Contacts
适用产品/相关产品CST-100 II Housings

环境参数

工作温度+105°C
