点击放大查看

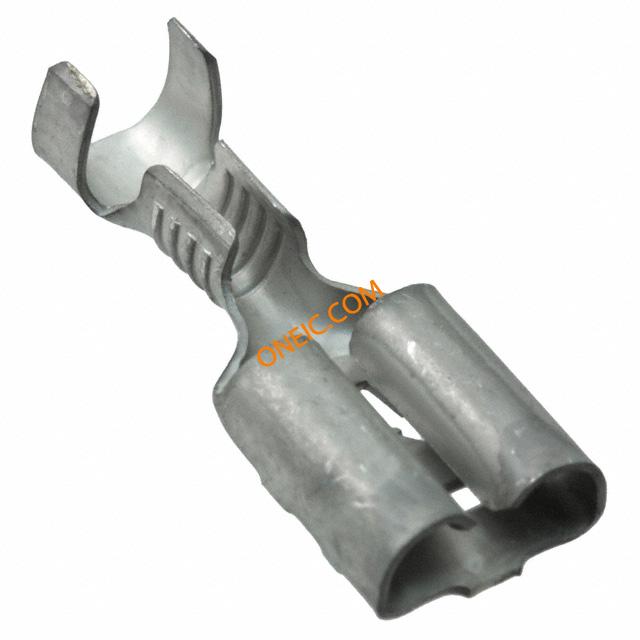

141013-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Terminals TERMINAL REC F FASTON 6,35 AWG18-14 TERM REC F FASTON 6.35 18-14AWG Terminal Rec 6.35mm 18-14AWG Fastin-on TERMINALREC6.35MM TE Connectivity FASTIN-FASTON .250 系列 压接插座 , 6.35 x 0.8mm |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 长度 | 21.45mm | 包装方式 | Bulk |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Not Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.25 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | Connector Backplane |
| 接触镀层 | Tin | 触头材料 | Brass |
| 总长度 | 0.753" (19.13mm) | 绝缘直径 | 0.122" ~ 0.157" (3.10mm ~ 3.99mm) |
| 焊盘布局尺寸 | 6.35 x 0.8mm | 线规或范围 - AWG | 14AWG |
产品信息
| 连接器性别 | SKT | 系列 | 250 |
