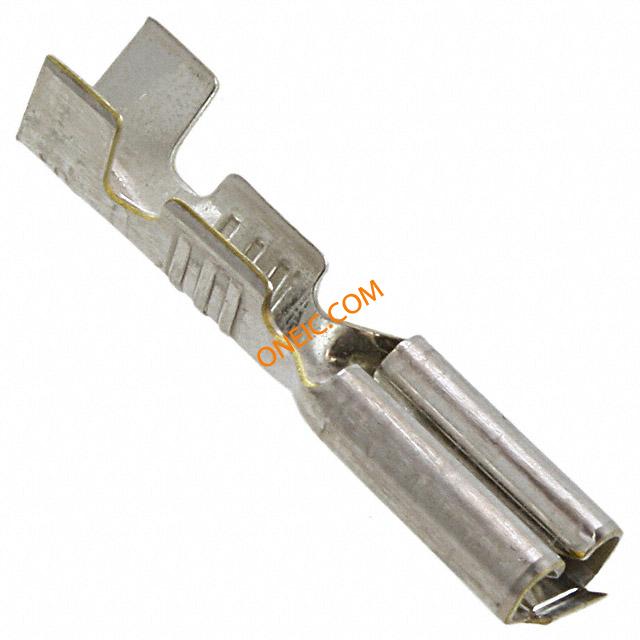

140717-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 16.1mm 3.76mm Tin Strip Terminals RECPT 2.79 x 0.51 mm FASTON Terminals - Premier & Commercial FASTON 110 RCPT 22 18 Receptacle terminal,FASTON 110,AWG 22-18 Quick Disconnect Terminal 18-22AWG RCP 16.1mm 3.76mm Tin Strip Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 2.79 x 0.51 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Receptacleterminal,FASTON110,AWG22-18 TE Connectivity FASTON .110 系列 压接插座 , 2.79 x 0.51mm, 镀锡触芯 FASTON 110 REC 22-18 AWG PTPB |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107154CT |
| 产品类别 | Terminals | 标准包装数量 | 10,000 |
| 工厂包装数量 | 10000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器阻抗 | 2.79 x 0.51 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | Tin | 长度 | 16.1mm |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 0.110" (2.79mm) | 电缆类型 | Stranded |
| 绝缘类型 | Not Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 22-18 | 端接方式 | Crimp |
| 安装类型 | No | 螺柱/焊片尺寸 | 0.11 in x 0.02 in |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Receptacle |
| 电缆直径 | 0.8mm² | 电缆材料 | Stranded |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | Commercial | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | 母端 | 适用端子尺寸 | 1.5 – 2.5 mm [ .059 – .098 in ] |
| 绝缘直径 | 1.50-2.49 [.059-.098] | 绝缘材料 - 类型 | No |
| 总厚度 | .25 mm [ .01 in ] | 焊盘布局尺寸 | 2.79 x 0.51mm |
| 法兰上方插针尺寸 | 2.8 mm [ .11 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 线规或范围 - AWG | 0.30-0.90² [22-18] | 第二连接器安装特性 | No |
| 外径-未扩张 | 2.5 mm [ .098 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | 110 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Terminal | ||
