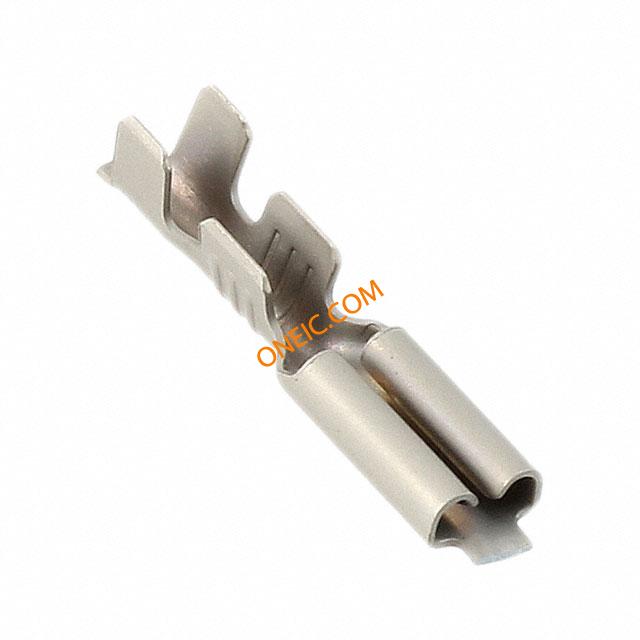

1217102-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 16-20AWG F Nickel Strip Terminals RCPT TAB 20-16AWG FASTON Uninsulated Receptacles & Housings CONN RCPT TAB 20-16AWG .110 FASTON Uninsulated Receptacles & Housings Product Highlights:Product Classification = Connectors - Terminals and SplicesTerminalTerminal Type = ReceptacleTab Fit = 2.79 x 0.51 mmBoard Mount = NoSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING CONN QC RCPT 16-20AWG 0.110 FASTON 110 REC 20-16 NICKEL C.R.SREEL |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A110904CT |
| 标准包装规格 | 15,000 | 产品类别 | Terminals |
| 标准包装数量 | 45,000 | 工厂包装数量 | 15000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 开关功能 | 快速连接 |
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 表面处理 | Nickel | 材料（通用） | Steel |
| 包装方式 | Reel | 插片宽度 | 2.79 x 0.51 [.110 x .020] |
| 厚度 | 0.25 [0.010] | 电缆类型 | Regular Wire |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Standard | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Nickel |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 钢 |
| 插入力 | Normal | 触头材料 | Steel |
| 总长度 | 0.635" (16.13mm) | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | 母端 | 适用端子尺寸 | 1.52 – 2.54 mm [ .06 – .1 in ] |
| 绝缘直径 | 1.52-2.54 [.060-.100] | 绝缘材料 - 类型 | No |
| 总厚度 | .25 mm [ .01 in ] | 法兰上方插针尺寸 | 2.8 mm [ .11 in ] |
| 法兰下方引脚尺寸 | .51 mm [ .02 in ] | 接触镀层厚度 | 3.81 µm [ 150 µin ] |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | 第二连接器安装特性 | No |
| 外径-未扩张 | 2.54 mm [ .1 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | 110 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
