103735-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 8POS 30AU Headers & Wire Housings LTCH HDR W/O SWAGE 8 Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MTE HDR SRST LATCH .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 24 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mΩ |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 13.59 mm [ .535 in ] | 长度 | 22.86 mm [ .9 in ] |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 安装样式 | 不带 | 排数 | 1 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 包装数量 | 24 |
| 面板安装类型 | 垂直 | 端接样式 | Through Hole |
| 第一连接器类型 | 带罩 | 第一触头极性 | Pin (Male) |
| 触点数 | 8 | 端接表面处理 | 带有 |
| 接触件尾部长度 | 2.54 µm [ 100 µin ] | 位数 | 8 |
| 兼容外壳尺寸（如TM-700等） | 母端护套组件 | 触头长度-柱 | 3.3 mm [ .13 in ] |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡铅 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MTE |
| 架构类型 | 否 | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 65 C to + 105 C | ||
相关型号

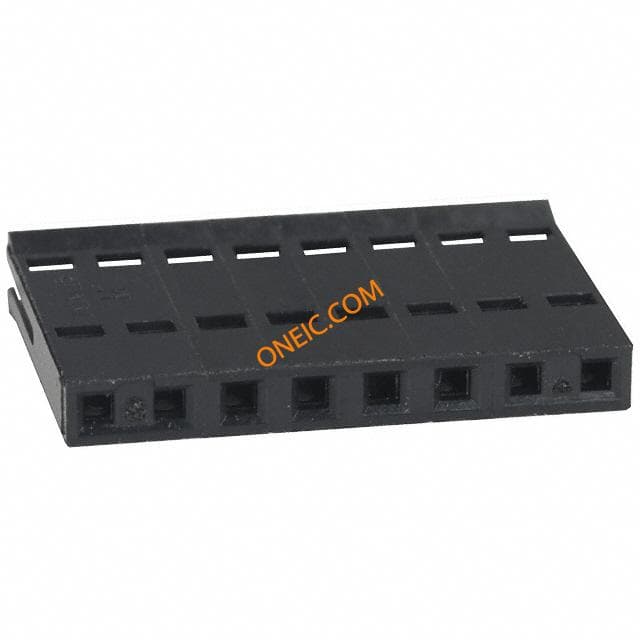

487378-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 8POS .100 SLIMLINE FFC & FPC Connectors 100X100 FFC HSG REC 1X08P Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Slimline8 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,8POS,2.54MM,SLIMLINE,SINGLER 008 HOUSING FFC RCPT 100CL SR
103648-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 UNLOADED Housing 8 way receptacle IDC AmpModu Headers & Wire Housings RECEPT 8 POS RECEPT 8 POS UNLOAD Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing8wayreceptacleIDCAmpModu TE Connectivity AMPMODU MTE 系列 8路 2.54mm节距 母 IDC 连接器 08 MTE RCPT HSG SR RIB .100CL
103958-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU 8 Position Single Row 2.54 mm Pitch Latching Socket Housing 2X8 MTE RCPT SR LATCH .100CL

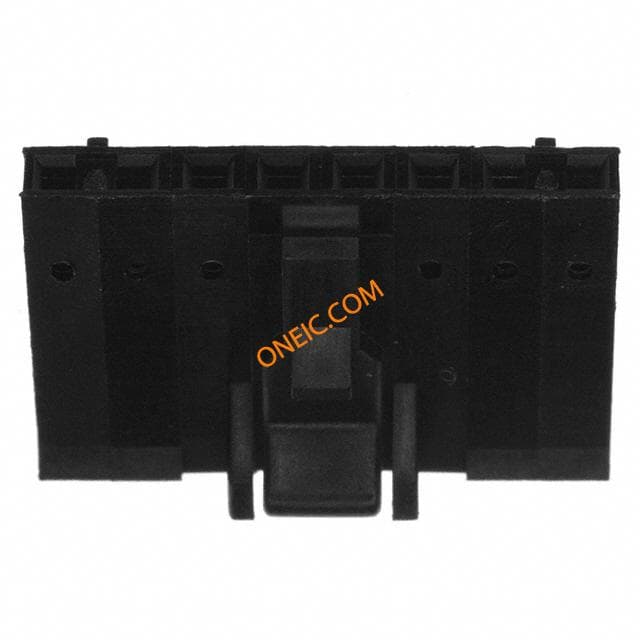

487526-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 8POS.100 SLIM W/LATCH FFC & FPC Connectors FFC RCPT HSG 8P Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 8Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 8POS, 1ROW CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,8POS,2.54MM,SLIMLINE,SINGLER 008 HOUSING FFC RCPT 100CL SR
103959-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 26-30 TIN Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
104257-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .1" POL UNLOAD 8 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 8P Conn Housing RCP 8 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 8WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 8 路 直 母 PCB 壳体 08 MTE RCPT HSG SR LATCH .100
5-103958-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
5-103961-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 26-30 30GOLD Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
103968-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 2X8 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 2X8 MTE RCPT SR RIBBED .100CL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103960-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 26-30 15GOLD Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
103956-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL
103969-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 22-26 15AU
5-103956-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingHousing Type = Housing - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM TE Connectivity AMPMODU MTE 系列 8路 2.54mm节距 母 IDC 连接器 , 电缆安装 2X8 MTE RCPT SR LATCH .100CL
103957-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 8P 546 Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,2X8MTERCPTSRLATCH.100CL 2X8 MTE RCPT SR LATCH .100CL
5-103957-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 8POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 8P Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 8POS, 2.54MM MTERECPASSY,2X8MTERCPTSRLATCH.100CL 2X8 MTE RCPT SR LATCH .100CL
5-103971-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 30-26AWG TIN Headers & Wire Housings 2X8 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR RIBBED .100CL
103971-7
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN RCPT HOUSING 8POS .100 SNGL Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 8Housing Type = ReceptacleContact Type = Receptacle
103961-7
te connectivity / amp
Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 26-30 30GOLD Headers & Wire Housings 2X8 MTE RCPT SR LATCH .100CL .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X8 MTE RCPT SR LATCH .100CL

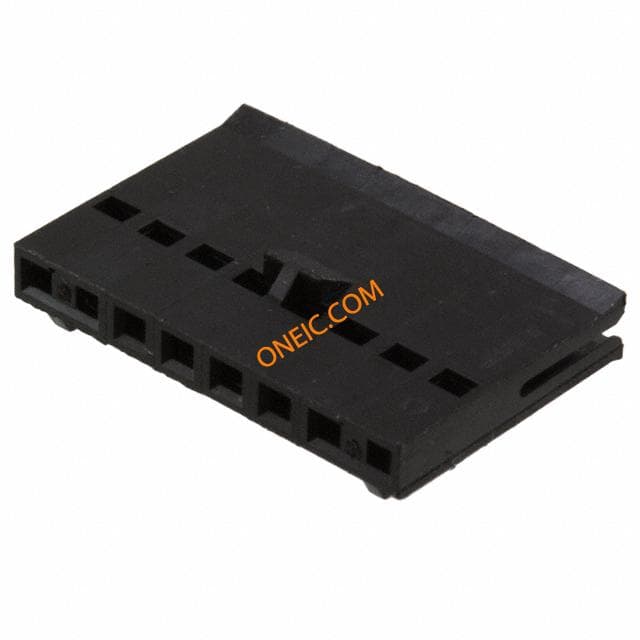

487769-6
