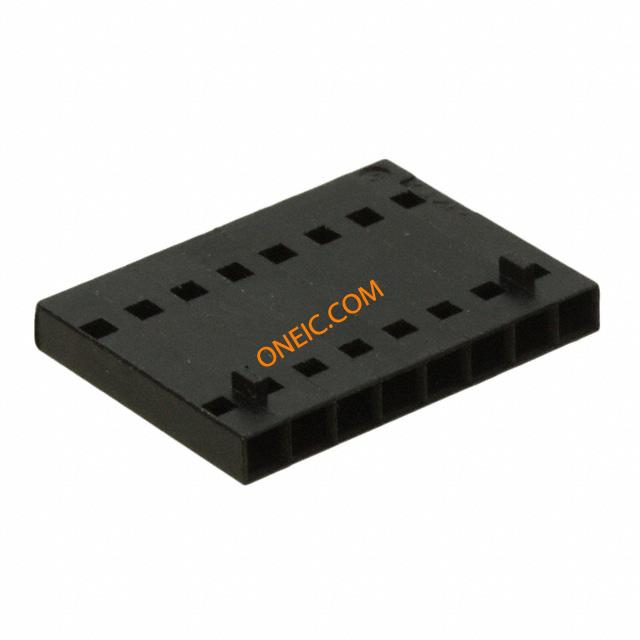

点击放大查看
103648-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 8POS .100 UNLOADED Housing 8 way receptacle IDC AmpModu Headers & Wire Housings RECEPT 8 POS RECEPT 8 POS UNLOAD Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 8Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing8wayreceptacleIDCAmpModu TE Connectivity AMPMODU MTE 系列 8路 2.54mm节距 母 IDC 连接器 08 MTE RCPT HSG SR RIB .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | 1036487 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 | 保护额定电压（VPR） | 600 VACrms |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 2.24 mm [ .098 in ] | 长度 | 20.26 mm [ .8 in ] |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 22-30 AWG |
| 排间距 | 2.54 mm | 触头类型 | Female Socket |
| 极化 | Ribbed | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | Receptacle |
| 插入件材料 | 磷青铜 | 壳体材料 | Thermoplastic |
| 包装数量 | 1 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 8 | 接触件端接 | Crimp |
| 位数 | 8 | 兼容外壳尺寸（如TM-700等） | 公端 |
| 安装孔直径 | 带有 | 中心触点材料 | 2.54 [.100] |
| 典型触点布局 | 同轴 | ||
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | +105°C |
