1-87655-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 12 POS 3.96mm Solder RA Thru-Hole .156 Inch AMPMODU .031 X .062 Mod l CONN HEADER 12POS R/A .156 TIN Headers & Wire Housings 12 MODI HDR SRRA .156CL 12 MODI HDR SRRA .156CL 12 MODI HDR SRRA .156CL Search Keywords:board to board, discrete, AMPMODU, NIC, Network Interface Cards, PC Cards, power supply, pcb connectors, |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 50 |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR16455, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 接触电阻 | 12 | 最大额定电流 | 5 A |
| 保护额定电压（VPR） | 1200 VAC | ||
机械参数
| 颜色 | Black | 间距 | 3.96 mm |
| 底座类型 | 不带 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 稳定器 | 不带 | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin-Lead Over Nickel |
| 安装样式 | 不带 | 排数 | 1 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 包装数量 | 50 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | 插针 |
| 第一连接器类型 | 不带罩 | 第一触头极性 | Pin (Male) |
| 外径 | .787 mm [ .031 in ] | 触点数 | 12 |
| 端接表面处理 | 不带 | 位数 | 12 |
| 安装孔直径 | 带有 | 接触长度 - 配合 | 0.345" (8.76mm) |
| 端子柱长度 | 6.985 mm [ .275 in ] | 接触镀层厚度 | 50µin (1.27µm) |
| 静电放电屏蔽 | 不带 | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD I | 钥匙类型 | 是 |
| 产品子类型 | Plugs - PCB | 按键数 | 6 |
| 加载位置数 | All | ||
环境参数
| 密封等级 | 不带 | 工作温度 | - 65 C to + 60 C |
文档与媒体
相关型号
1-87025-1
te connectivity / amp
Conn Housing RCP 12 POS 3.96mm Crimp ST .156 Inch AMPMODU .031 X .062 Mod l CONN HOUSING 12POS .156 Headers & Wire Housings HOUSING 12P .156 .156 Inch AMPMODU .031 X .062 Mod l Product Highlights:HousingStandard ProfileNot KeyedNumber of Positions = 12StampedSearch Keywords:wire to board, discrete, AMPMODU, NIC, Network Interface Cards, PC Cards, power supply, 12 MODI CRMP S-I HSG SR MRKD
1-87985-2
te connectivity / amp
Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole .156 Inch AMPMODU .031 X .062 Mod l CONN RCPT 12POS .156 TIN Headers & Wire Housings RCPT 12P .156 TIN Conn Socket Strip RCP 12 POS 3.96mm Solder ST Thru-Hole Search Keywords:board to board, discrete, AMPMODU, NIC, Network Interface Cards, PC Cards, power supply, pcb connectors, 12 Position Single Row 5 A Mod I Vertical Receptacle Assembly 12 MODI BDMNT RCPT SR .156CL
1-87025-2
te connectivity / amp
Conn Housing RCP 12 POS 3.96mm Crimp ST .156 Inch AMPMODU .031 X .062 Mod l CONN HOUSING 12POS SINGLE .156 Headers & Wire Housings HSG 12P SINGLE .156 Conn Housing RCP 12 POS 3.96mm Crimp ST Search Keywords:wire to board, discrete, AMPMODU, NIC, Network Interface Cards, PC Cards, power supply, 12 MODI CRMP S-I HSG SR .156CL

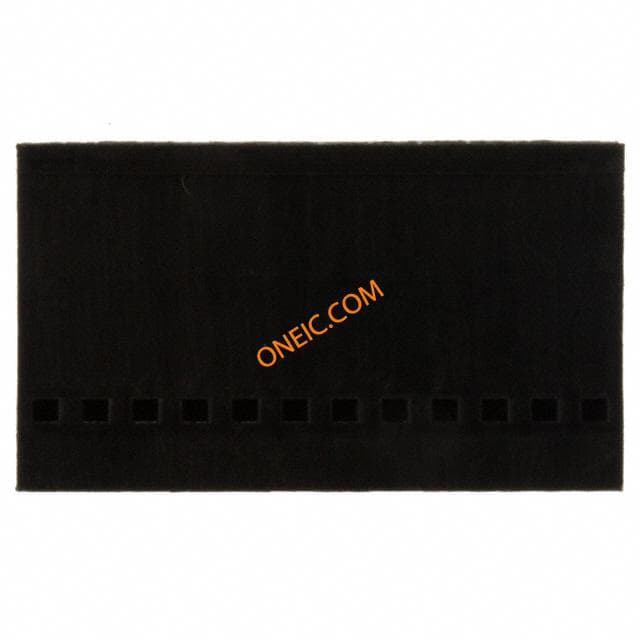

2-87175-6
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 LOCKING Headers & Wire Housings CONN HOUSING 12 POS SINGLE ROW Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 LOCKING CLIP HSG SR .100CL

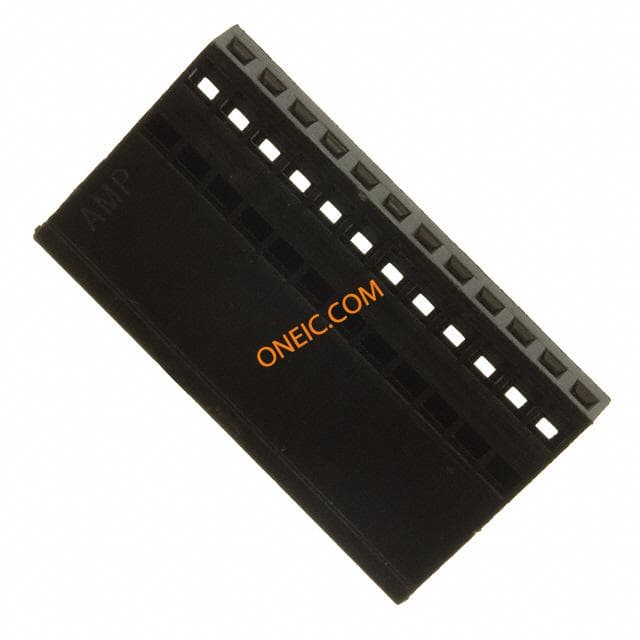

2-87175-5
