点击放大查看

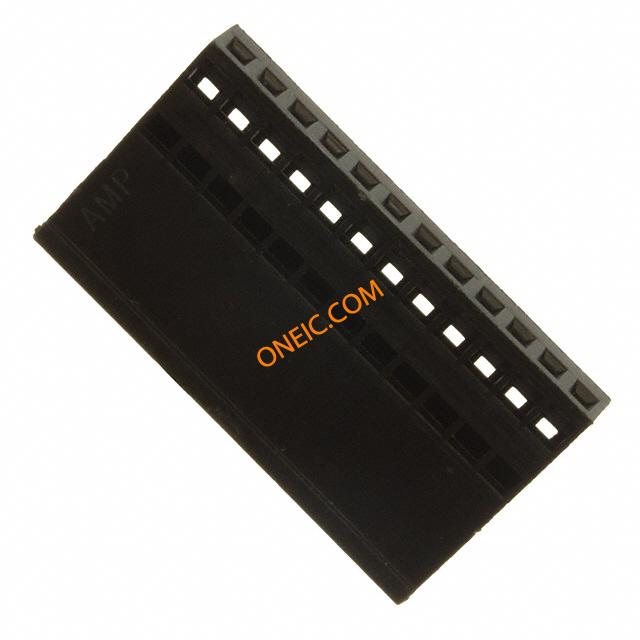

2-87175-5

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 LOCKING Headers & Wire Housings CONN HOUSING 12 POS SINGLE ROW Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 LOCKING CLIP HSG SR MRKD
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A26938
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	供电电压	250 VAC
接触电阻	12 mΩ	输入电阻	5000
连接器阻抗	压接	最大额定电流	3 A
保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	4.44 mm [ .175 in ]	长度	30.88 mm [ 1.22 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	导线线规	22-30 AWG
排间距	2.54 mm	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
排数	1	壳体材料	Polyester
包装数量	1	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	12
接触件端接	Crimp	位数	12
兼容外壳尺寸（如TM-700等）	.25 直角柱体	安装孔直径	不带
典型触点布局	同轴

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU Locking Clip
产品子类型	Connectors	其他规格	是
应用细节	Board-to-Board

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

2-87175-5?RQPN=2-87175-5

相关型号

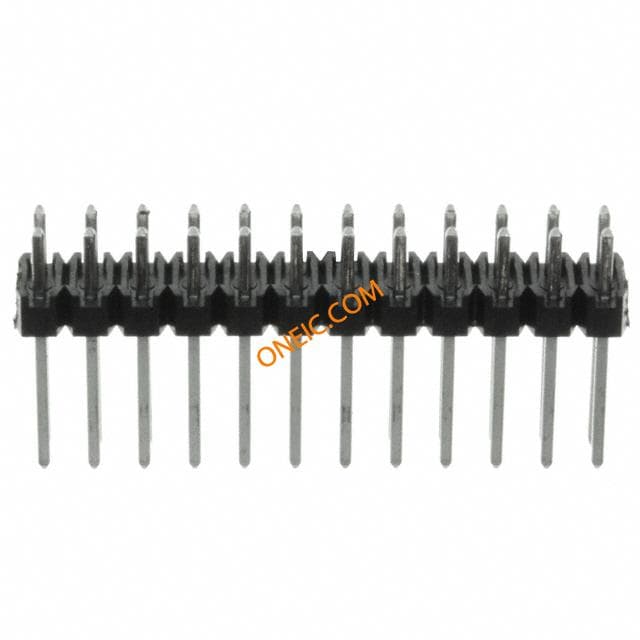

1-104427-0
