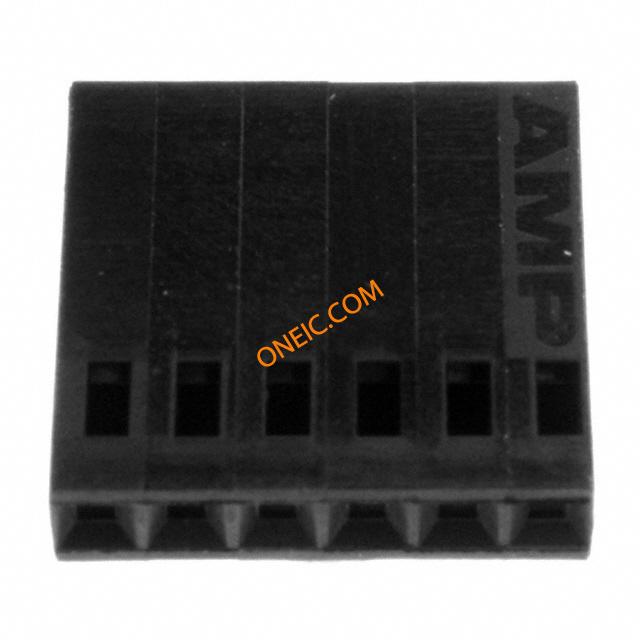

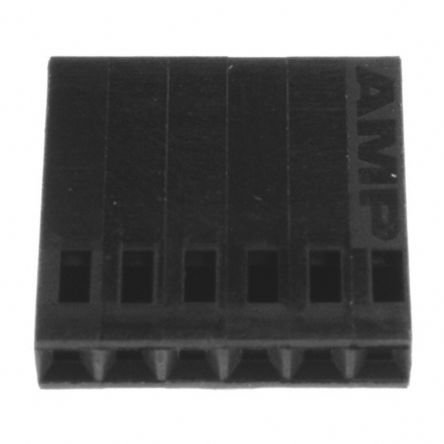

1-87499-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 6POS .100 SINGLE Headers & Wire Housings MOD IV HSG 6P Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 6 路直母电缆安装 PCB 连接器外壳 06 MODIV HSG COMP SR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	250 VAC	开关功能	Unlatched
最大额定电流	3 A	最小供电电压	250VAC

机械参数

颜色	Black	深度	15.24 mm
间距	0.100" (2.54mm)	高度	3.56 mm
重量	0	包装方式	Bulk
排间距	2.54 mm	触头类型	Female Socket
外壳颜色	Black	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	:-
安装样式	Free Hanging	排数	1
触头材料	:-	壳体材料	Thermoplastic
总长度	15.37 mm	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	6
接触件端接	Crimp	位数	6

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	:Unstamped Housing	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

- 65 C to + 105 C
