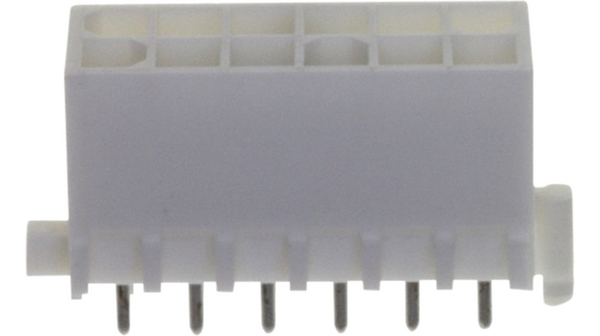

1-794066-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board PIN 12 POS 4.14mm Solder ST Thru-Hole .163" Centerline, 600 V, 9.5 A max. CONN HDR 12POS STR DUAL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 9.5A Headers & Wire Housings HEADER 12 POS TIN DUAL ROW Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Conn Power PIN 12 POS 4.14mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 124.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, HEADER, THT, 4.14MM, 12WAY MINI-UNIVM-N-LHDRS,12PMINIUMNLHDRW/DHSNLF Pin header Pitch4.14 mm Poles 2 x 3 straight MATE-N-LOK Mini Universal, 1-794066-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 9.5A , 通孔 12P MINI UMNL HDR W/DH SN LF |
| 分类 |
商业参数
| 商标名 | MATE-N-LOK | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 600 V ac | 开关功能 | Latched |
| 最大额定电流 | 9.5A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 高度 | 14.25 mm | 重量 | 0.02 |
| 直径 | Not Required mm | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 主要材料 | InterconnectSystem | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 12 |
| 接触件端接 | :Through Hole Vertical | 位数 | 12 |
| 接触镀层厚度 | 150µin (3.81µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Wire to Board | 连接器性别 | PIN |
| 系列 | MATE-N-LOK | 产品特性 | Board Lock |
| CAD图纸 | 3D CAD Model | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Headers | 端口数 | 1 Port |
| 加载位置数 | All | ||
