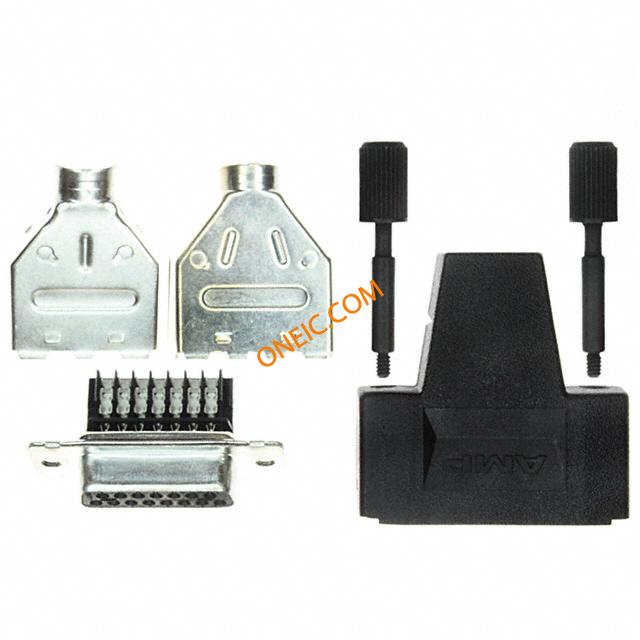

点击放大查看
1-747945-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 15 POS IDT ST Cable Mount 15 Terminal 1 Port Bulk D-Sub Standard Connectors KIT RCPT 15P HDE SHLD ENCLSRE Standard Cable Connectors CONN D-SUB RCPT 15P 26-30AWG AU Conn D-Subminiature SKT 15 POS IDT ST Cable Mount 15 Terminal 1 Port Bulk Product Highlights:ConnectorProduct Series = HDE-20 (IDC)15 PositionsWith EnclosureShieldedSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub KIT,RCPT,15P,HDE,SHLD ENCLSRE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250V | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | Varies by Wire Gauge | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 间距 | 2.77 mm [ .109 in ] |
| 高度 | 16 mm | 外形尺寸(长x宽) | 2 |
| 包装方式 | Bulk | 屏蔽 | 是 |
| 电缆类型 | 分离式导线, 环状护套电缆 | 外壳尺寸 | 2 |
| 导线线规 | .05 – .15 mm² [ 26 – 30 AWG ] | 端接方式 | IDC, Discrete Wire |
| 螺纹尺寸 | 4-40 | 触头类型 | Signal |
| 外壳表面处理 | 锡 | 第二连接器 | With |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Tin |
| 端子尺寸 | 20 | 线径 | 4.83 – 9.53 mm [ .19 – .375 in ] |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Cable Side; Male Jackscrew (4-40) | 安装样式 | Wire |
| 排数 | 2 | 封装形式 | 带有 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 插入件材料 | 磷青铜 | 屏蔽材料 | 钢 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon/Polyester |
| 总长度 | 42.79 mm | 安装特性 | 无 |
| 包装数量 | 1 | 接地凹痕 | Without |
| 绝缘高度 | Yes | 端接样式 | Solder |
| 外径 | 9.53 mm [ .375 in ] | 触点数 | 15 |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 15 |
| 外壳尺寸-插件 | Front Metal Shell | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 30 – 26 |
| 触点材料 - 镀层 | 热塑性 | 护套（绝缘）材料 | Zinc Alloy |
| 线缆外径（最大） | 4.83 – 9.53 mm [ .19 – .375 in ] | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 备注 | 屏蔽外壳扩张工具 58241-4 适用的最大电缆外直径为 9.02 [.355]。, 护套和编织层移除后的最大电缆直径。 | 类型 | D-Subminiature |
| 等级 | 标准 | 连接器性别 | Female |
| 产品特性 | Backshell, Shielded | 预装 | No |
| 产品子类型 | 连接器 | 端口数 | 1 Port |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
