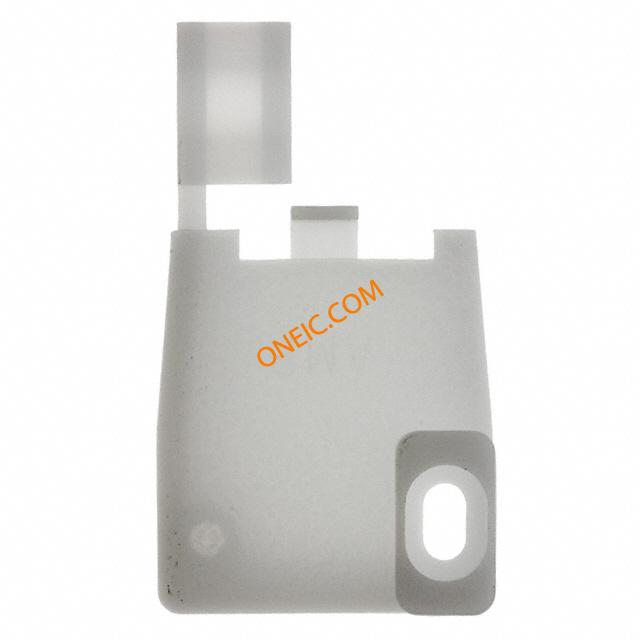

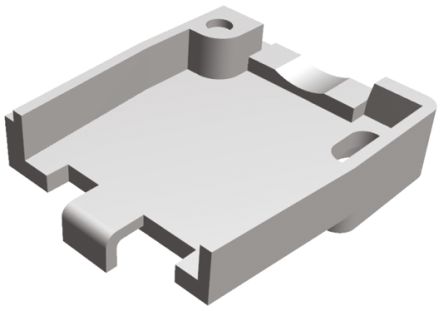

1-640720-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 3 POS Housing Strain Relief Nylon Natural Soft Shell - Accessories CONN STRAIN RELIEF ENCLOSE 3POS Power to the Board STR REL 1X03C P/C V2 Connector Accessories 3 POS Housing Strain Relief Nylon Natural Product Highlights:Strain ReliefUniversal MATE-N-LOKNylon Housing MaterialColor = NaturalNumber of Circuits = 3Search Keywords:Power Pin & Socket, Lighting Interconnection Products, Valve Connector, PWRSIGALLP STRAIN RELIEF, 3WAY, NYLON U-M-N-LACCESSORIES,03PUMNLSTR/REL&INSRTNATL TE Connectivity 3路 应力释放支架, 使用于 MATE-N-LOK 系列 03P UMNL STR/REL & INSRT NATL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 连接器类型 - 电压输入 | Universal MATE-N-LOK | ||
机械参数
| 颜色 | Natural | 深度 | 33.02 mm |
| 重量 | 0.003 | 线径 | 1.02 â 4.83 [0.040 â 0.190] |
| 安装样式 | Snap In | 供货尺寸 | Yes |
| 壳体材料 | Nylon | 主要材料 | Interconnect |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 位数 | 3 |
| 绝缘材料 - 材质 | :Nylon | 典型触点布局 | In-Line |
产品信息
| 备注 | Strain relief part number represents one half of a strain relief. Two of a part | 类型 | Strain Relief |
| 系列 | Mate-N-Lok | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Strain Relief | 附件类型 | Strain Relief |
| 电路数 | 3 | 射频系列/标准 | 640720 |
| 有铅工艺兼容 | :Yes | 适用产品/相关产品 | Universal MATE-N-LOK Series |
