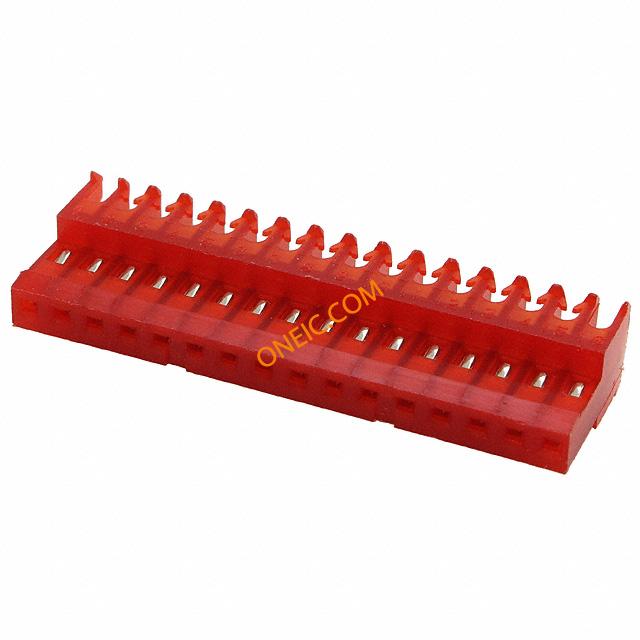

1-640620-6

点击放大查看

1-640620-6

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 16 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 16POS 22AWG MTA100 Headers & Wire Housings 16P MTA100 CONN ASSY F/T RED MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 16Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 16P MTA100 CONN ASSY F/T RED
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格250产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量250

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5 A

机械参数

颜色Red间距2.54 mm
高度7.75 mm [ .305 in ]长度40.64 mm [ 1.6 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规22 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Tin-Lead Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数16端接表面处理带有
接触件端接Locking Lance绝缘直径1.52 mm [ .06 in ]
位数16兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Feed Through可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None
