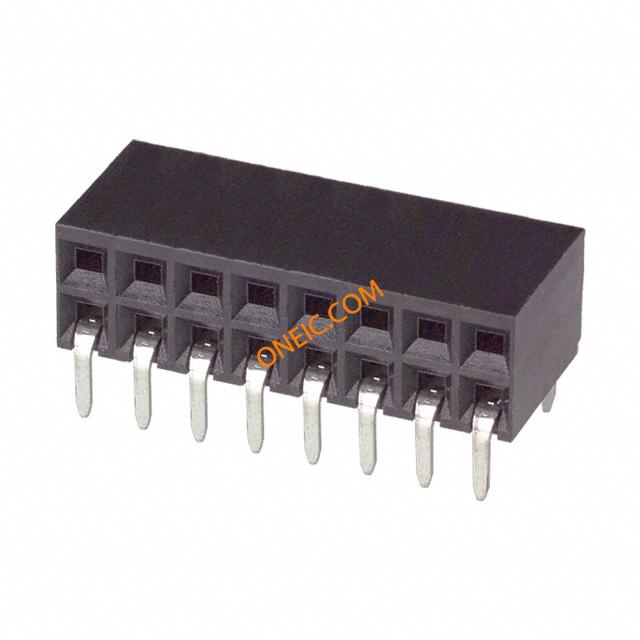

1-5535512-8

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 16 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 RT/A DUAL Headers & Wire Housings REC 2X08P R/A T/H Conn Socket Strip SKT 16 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ConnectorWith ContactsHousing Gender = Connector - ReceptacleContact Gender = ReceptacleMod IISearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 16 Position Dual Row 2.54 mm Pitch Through Hole Right Angle Receptacle 16 MODII HORZ DR CE EESS .100
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	28

合规参数

RoHS	Lead free / RoHS Compliant	标准	CSA LR7189, UL E28476
MIL-C-55032	No	材料阻燃等级	UL 94V-0

电气参数

输入电阻	5000	额定交流电压	333
连接器阻抗	Closed Entry, Side	最大额定电流	2 A
初始电阻（最小）	12

机械参数

颜色	Black	间距	2.54 mm
高度	6.05 mm [ .238 in ]	包装方式	Tube
壳体颜色	黑色	轴径尺寸	不带
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	引脚间距	0.100" (2.54mm)
安装类型	Through Hole, Right Angle	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	标准
排数	2	插入件材料	磷青铜
操作力	High, Standard	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	28
面板安装类型	通孔 - 焊接	连接器间距	.31
端接样式	Through Hole	触点数	16
位数	16	兼容外壳尺寸（如TM-700等）	公端
触头长度-柱	2.92 mm [ .115 in ]	典型触点布局	Short Point
表面贴装焊盘尺寸	Without	端子柱长度	2.92 mm [ .115 in ]
接触镀层厚度	30µin (0.76µm)	每排/每行位置数	All

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 停止使用最小为 6.50 [.256] 的正极插针，以防止行与行之间发生短路。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	Yes
产品子类型	Receptacles / Sockets - PCB	装配配置	Board Standoff
加载位置数	All

环境参数

温度范围	是	工作温度	- 55 C to + 125 C
封装热阻	1.4 – 2.4 mm [ .055 – .094 in ]

文档与媒体

在线文档

1-5535512-8?RQPN=1-5535512-8
