点击放大查看

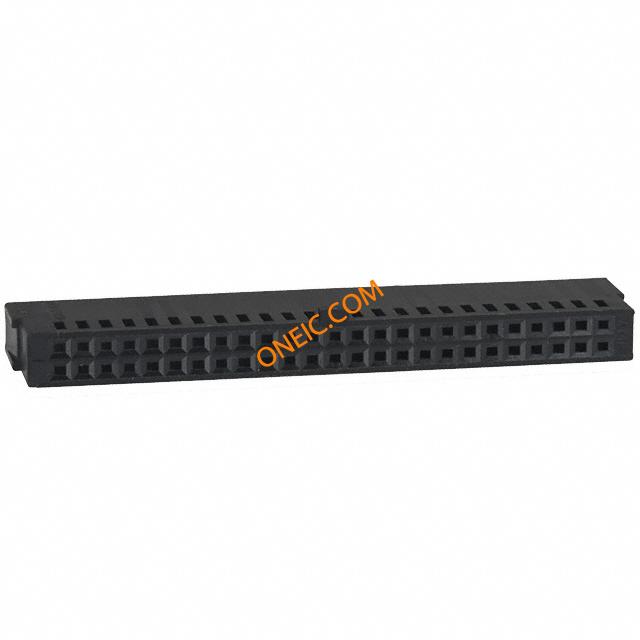

1-487223-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 050 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors 050 HOUSING FFC RCPT 100CL DR Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 50Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | Yes |
电气参数
| 额定电压 | 300V | 供电电压 | 300 VAC |
| 输入电阻 | 5000 | 钳位电压 | 720 |
| 最大额定电流 | 2A | 最小供电电压 | 300VAC |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 7.49 mm |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | FFC |
| 极化 | Center | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Standard | 排数 | 2 |
| 连接器用途 | Receptacle | 壳体材料 | Thermoplastic |
| 总长度 | 69.85 mm | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 端接样式 | 插座 | FFC/FCB厚度 | 0.05-0.13mm |
| 配接方向 | With | 触点数 | 50 |
| 位数 | 50 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [0.100] | ||
产品信息
| 备注 | Tin plated contacts are not recommended for use in receptacle housings larger t | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Locking Ramp |
| 产品子类型 | Housing | 连接类型 | FFC Cable |
环境参数
| 工作温度 | -65°C ~ 105°C | ||
相关型号
1-102153-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 50POS .100 GOLD Headers & Wire Housings 50P IDC EJECTHDR 360 Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 050 UNIV HDR SP 4S 15DP STD
1-5102160-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 50POS .100 GOLD Headers & Wire Housings 50 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:With ContactsHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM Connector;UniversalEjectionPinHeader;50;0.100in.x0.100in.;4-Sided Pin header DIN 41651 50P, 1-5102160-0, TE Connectivity A/L UNIV HDR 50P RA
1-103308-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 50POS GOLD Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, LO/PROSTDHDR,050LOPROHDRSP15DP 050 LOPRO HDR SP 15DP
1-102159-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 50POS .100 GOLD Headers & Wire Housings 50P UNIV HDR RA 4S Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 050 UNIV HDR RA 4S 15DP STD
1-5102154-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 50POS .100 GOLD AMP-LATCHUniversalEjectionPinHeader AMP-LATCH Universal Ejection Pin Header; 50 Pos.; .100 CL; Vertical Mount Headers & Wire Housings 50 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile50 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM AMP-LATCHUniversalEjectionPinHeader,50Pos.,.100CL,VerticalMount Pin header DIN 41651 50P, 1-5102154-0, TE Connectivity A/L UNIV HDR 50P VERT
1-102155-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole AMP-LATCH Universal Headers CONN HEADER VERT 50POS .100 GOLD Headers & Wire Housings 50P HEADER 360 Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 050 UNIV HDR SP 4S 15DP STD
1-111446-1
TE Connectivity / AMP
Headers & Wire Housings 050 UNIV I/O 30DP NO CONN IDC PIN 50POS 30AU NO LATCH Conn IDC Connector PL 50 POS 2.54mm IDT RA Cable Mount Bulk Conn IDC Connector PL 50 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 50PlugWithout Mating PolarizationTerminate To Ribbon Cable

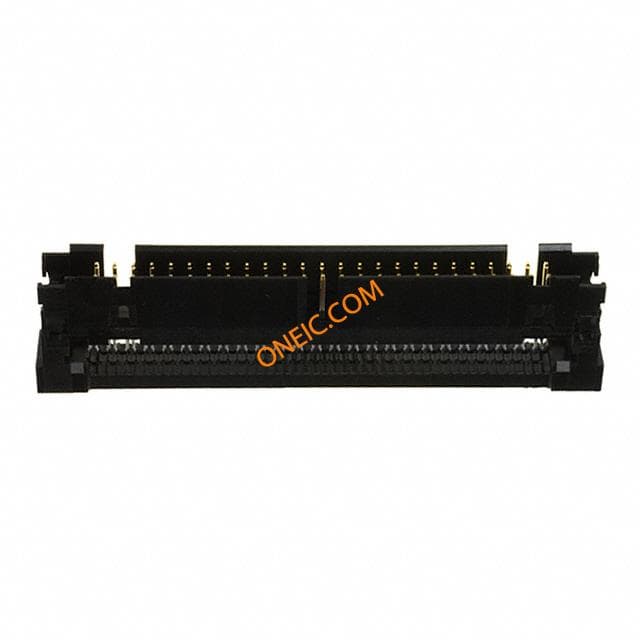

1-111446-7
te connectivity / amp
Conn IDC Connector PL 50 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 50POS 30AU NO LATCH Headers & Wire Housings 100X100 PLG 2X25P WIRE-BOARD CONNECTOR PLUG, 50POS, 2.54MM TE Connectivity AMP-LATCH 系列 2行 50路 2.54mm节距 公 IDC 连接器 , 电缆安装 50 UNIV I/O, NO EARS,LEAD FREE
1-5103309-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 50POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 50P low profile Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM HEADER,PIN,AMP-LATCH,50POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 50P, 1-5103309-0, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 50路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 50P VERT BLACK
1-5102162-0
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 50POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X025P R/A Conn Ejector Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 50P RA
1-103310-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS GOLD Headers & Wire Housings 050 HEADER RA 15DP 245 Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 050 LOPRO HDR RA 15DP
1-5103310-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS GOLD Headers & Wire Housings 100X100 HDR 2X025P R/A LOW PROFILE Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM Header,ThroughHole;Shrouded;RightAngle;CopperAlloy;Thermoplastic;50 A/L LOW PRO HDR 50P RA BLACK
1-103311-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS GOLD Headers & Wire Housings HDR R.A. DOUBLE 50P low profile Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile50 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 050 LOPRO HDR RA 30DP

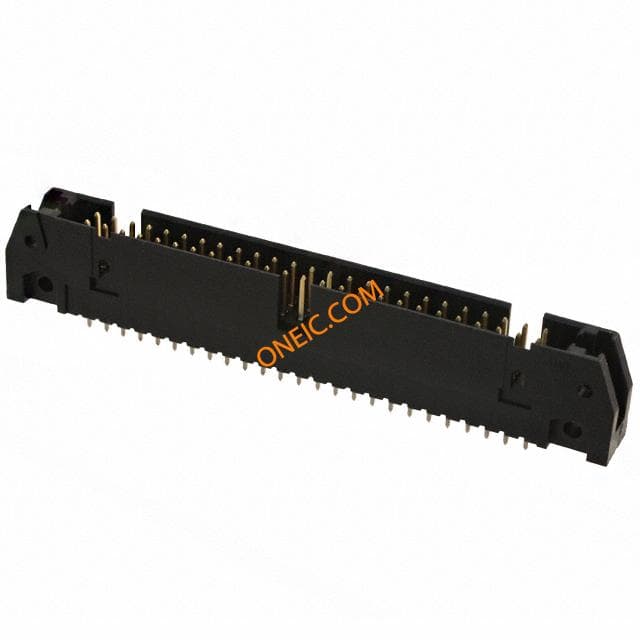

1-102154-0
