1-172234-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 4.14mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 3POS MINI-U-MNL RED |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 600 | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | Red | 间距 | 4.14 mm |
| 锁定类型 | Positive Lock | 包装方式 | Bulk |
| 触头类型 | Male or Female | 柱间距 | 4.14 [.163] |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 壳体材料 | Nylon | 包装数量 | One Piece Housing |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 典型触点布局 | In-Line |
| 接触镀层厚度 | 0.99 [0.039] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 产品子类型 | Housing |
| 模块/板类型 | No | 电路数 | 3 |
文档与媒体
相关型号
1-172337-9
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-UMNL BLACK
172166-1
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI UNIV-MATE 3 way cable plug Min Mate-N-Lok Pin & Socket Connectors 3P PLUG MINI UNIV M-N-L Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, PLUG, 3 WAY, NYLON Connector,SoftShell;3;600VAC;Plug;In-Line;Nylon;Plug;Natural Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:3; 600V Pin housing 4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172166-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 3 路 直 公 压接连接器外壳 3 CIR UNIV M-N-L PLUG
172337-1
te connectivity / amp
Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 3POS MINI-U MNL NAT Housing,plug,Mate-n-lok,3 Way,Natural Pin & Socket Connectors UNIV M-N-L HSG Conn Housing PL 3 POS 4.2mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 3WAY Housing,Natural,Plug,FreeHanging/PanelMount,3Pos Pin housing Pitch4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight MATE-N-LOK Mini Universal, 172337-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.2mm 节距 3 路 直 公 压接连接器外壳 MINI UMNL PLUG HOUSING 3P
770834-1
te connectivity / amp

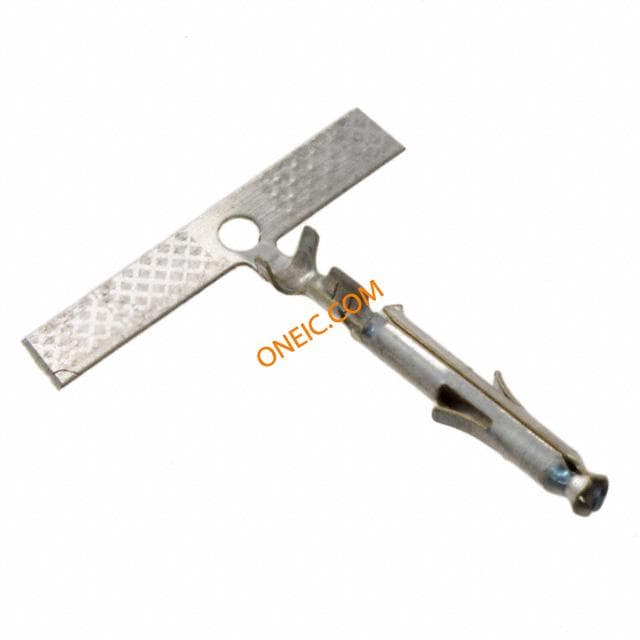

Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN
