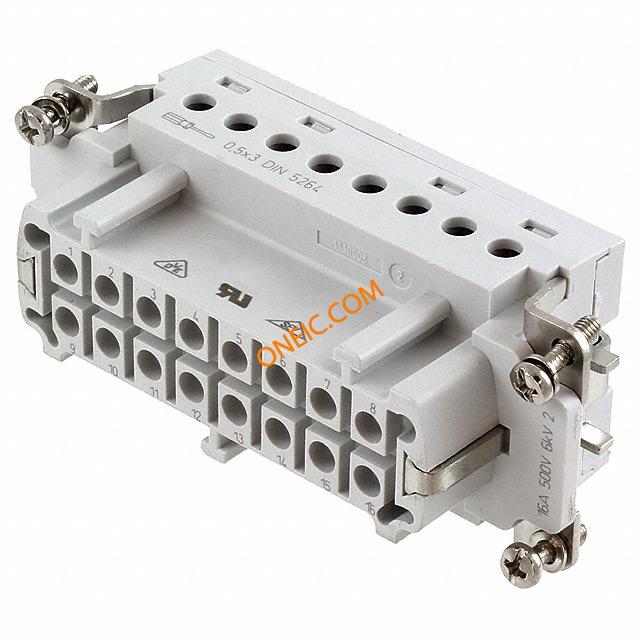

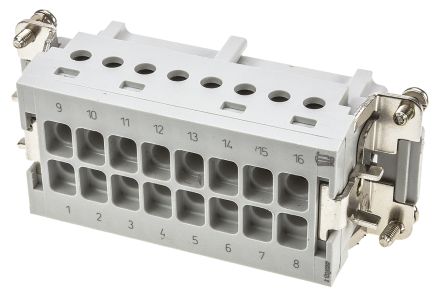

1-1103639-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Screw ST Panel Mount Loose Piece HTS Connectors and Accessories CONN INSERT SOCKET HE.16 SERIES HE 16 way screw terminal female insert Heavy Duty Power Connectors SKT INSERT 16+PE HE.16 SIZE 6 Conn Heavy-Duty Rectangular F 16Signal/1Ground POS Screw ST Panel Mount Loose Piece Product Highlights:HE.16 SeriesInsertProduct Size = 6Contact Type = Screw TerminalInsert Style = SocketSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, SCREW TERM, 1-16WAY HE16WAYSCREWTERMINALFEMAL Connector: HTS; female; HTS HE; PIN:16; 16+PE; size 6; 16A; 400V TE Connectivity HE 系列 16针 16P+E极 插座 大负荷电源连接器套件 HE.16.BU.S.B 1-16 |
| 分类 |
商业参数
| 交货时间 | 80 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA, DIN VDE 0110, DIN VDE 0627, SEV, UL |
| 海关税号 | 85369010 | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 400V | 最大额定电流 | 16A |
机械参数
| 尺寸 | 6 | 颜色 | Gray |
| 重量 | 0.12 | 材料（通用） | thermoplastic |
| 钻孔直径 | 77.5mm | 包装方式 | Loose Piece |
| 端接方式 | Screw | 安装类型 | Panel Mount |
| 连接器类型 | Insert | 接触镀层 | Silver |
| 安装样式 | for cable | 排数 | :2 |
| 封装形式 | size 6 | 触头材料 | Hard Silver |
| 壳体材料 | Polycarbonate (PC), Glass Filled | 包装数量 | 5 |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | see |
| 端接样式 | Screw | 第一触头极性 | :Socket |
| 外径 | 84.5mm | 触点数 | 16Signal/1Ground |
| 接触件端接 | :Screw | 横截面形状 | 0.5...2.5mm2 |
| 位数 | 16+Ground | 外壳尺寸-插件 | :6 |
| 小外径 | 27mm | 触点材料 - 镀层 | silver plated |
| 第一连接器安装特征 | 16+PE | ||
产品信息
| SPG | 5 | 类型 | Heavy-Duty Rectangular |
| 连接器性别 | PL | 系列 | Han E |
| 极数格式 | 16P+E | 制造商全称 | HTS |
| 产品子类型 | Inserts | 附件类型 | Contact |
| 适配器系列 | HTS HE | 单元数量 | 1 |
| 其他规格 | 33mm | 适用产品/相关产品 | Machined Crimp Contact |
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | -40°C ~ 125°C |
相关型号
