1-102394-8

点击放大查看

1-102394-8

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 40 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT .100 IDC 40POS DL Headers & Wire Housings 40P RECEPTACLE Conn Housing RCP 40 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 AMP MODU MT HSG DR .100CL
分类
连接器解决方案矩形连接器高可靠性矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量60

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

供电电压250 VAC接触电阻15 mΩ
输入电阻5000连接器阻抗刺破式压接 (IDC)
最大额定电流3 A保护额定电压（VPR）600 V

机械参数

颜色Black深度15.24 mm
间距2.54 mm高度6.1 mm
长度50.8 mm [ 2 in ]锁定类型不带
包装方式Bulk壳体颜色黑色
导线线规20-30 AWG排间距0.100" (2.54mm)
触头类型Female Socket外壳颜色Black
安装类型Straight连接器类型Receptacle
安装样式Wire排数2
壳体材料Thermoplastic总长度50.8 mm
包装数量60端接样式IDC
第一触头极性Socket (Female)触点数40
接触件端接IDC位数40
兼容外壳尺寸（如TM-700等）连接器安装孔直径不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMPMODU MT
产品子类型Receptacles / Sockets - Housings

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C

文档与媒体

在线文档
1-102394-8?RQPN=1-102394-8

相关型号

6-103166-8

6-103166-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU Headers & Wire Housings HDR 2X20P R/A T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded20 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD LF

¥20.8080
详情

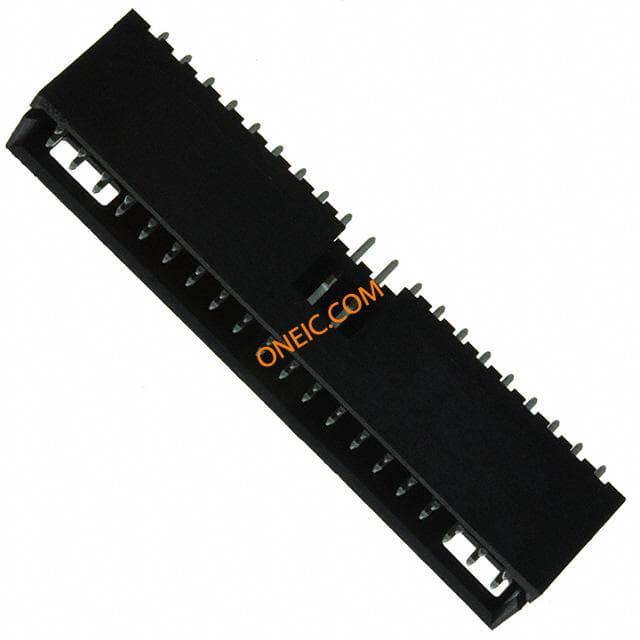

6-87589-6

6-87589-6

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 40POS PCB TIN Headers & Wire Housings SHROUDED VER DUAL 40 detent windows Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL

¥15.8440
详情
6-103168-8

6-103168-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL

¥20.5360
详情
102399-3

102399-3

te connectivity / amp

Contact SKT Crimp ST Cable Mount Contacts-AMPMODU Machine Applied CONN TERM RECEPT 22-26AWG 30GOLD Headers & Wire Housings MT RECP LP MT RECP LP MT RECP LP Search Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU

¥1.2920
详情
6-102618-8

6-102618-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 15AU Headers & Wire Housings HDR 2X20P VRT T/H Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded40 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL

¥25.2960
详情
1-102396-8

1-102396-8

te connectivity / amp

Connector Accessories 40 POS Cover Thermoplastic Black .100 AMPMODU Headers, Housings & Contacts CONN COVER 40POS 2PCS REQD/1 COV Headers & Wire Housings STANDARD COVER 40P hermaphroditic Connector Accessories 40 POS Cover Thermoplastic Black Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 AMPMODU MT COVER DR .100CL

¥5.8480
详情
1-103168-8

1-103168-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 30AU Headers & Wire Housings SHROUDED VER DUAL 40 detent windows Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL

¥33.8640
详情
1-102536-8

1-102536-8

te connectivity / amp

Connector Accessories 40 POS Cover Thermoplastic Black Headers & Wire Housings BACK COVER 40 POS shielding/nonshldng .100 AMPMODU Headers, Housings & Contacts CONN COVER BACK 40POS MT .100 Connector Accessories 40 POS Cover Thermoplastic Black Product Highlights:AccessoryAccessory Type = CoverNumber of Positions = 40Cover Type = For Shielding and Non-Shielding ApplicationsCover Side = BackSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 40 AMPMODU MT COVER DR .100CL

¥5.3040
详情
1-87579-7

1-87579-7

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 40POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 40 detent windows .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD .100CL

¥11.3084
详情
6-102617-8

6-102617-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 15AU Headers & Wire Housings 40 HDR DRRA SHRD Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD LF

¥31.6880
详情
1-102681-5

1-102681-5

te connectivity / amp

Connector Accessories 40 POS Cover Thermoplastic Black .100 AMPMODU Headers, Housings & Contacts CONN COVER FRONT 40POS POLAR.100 Headers & Wire Housings 40P RECEPTACLE COVER Connector Accessories 40 POS Cover Thermoplastic Black Product Highlights:AccessoryAccessory Type = CoverNumber of Positions = 40Cover Type = LatchingCover Side = FrontSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE COVER, MT RECEPTACLE CONNECTOR Cover,Latching,40Position,AMPMODU 40 AMPMODU MT COVER DR .100CL

¥4.2017
详情
1-103166-8

1-103166-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 40POS 30AU Headers & Wire Housings SHROUDED RA DUAL 40 detent windows Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRRA SHRD .100CL

¥48.2800
详情
1-102618-8

1-102618-8

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 40POS 15AU Headers & Wire Housings SHROUDED VER DUAL 40 detent windows Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 40Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 40 MODII HDR DRST SHRD .100CL

¥30.0560
详情
1-102537-8

1-102537-8

te connectivity / amp

Connector Accessories 40 POS Cover Thermoplastic Black .100 AMPMODU Headers, Housings & Contacts CONN COVER FRONT 40POS MT .100 Headers & Wire Housings 40P HEADER COVER Connector Accessories 40 POS Cover Thermoplastic Black Product Highlights:AccessoryAccessory Type = CoverNumber of Positions = 40Cover Type = EjectionCover Side = FrontSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Cover;Ejection;40;Front;Low;Thermoplastic;Black;Yes 40 AMPMODU MT COVER DR .100CL

¥5.3720
详情

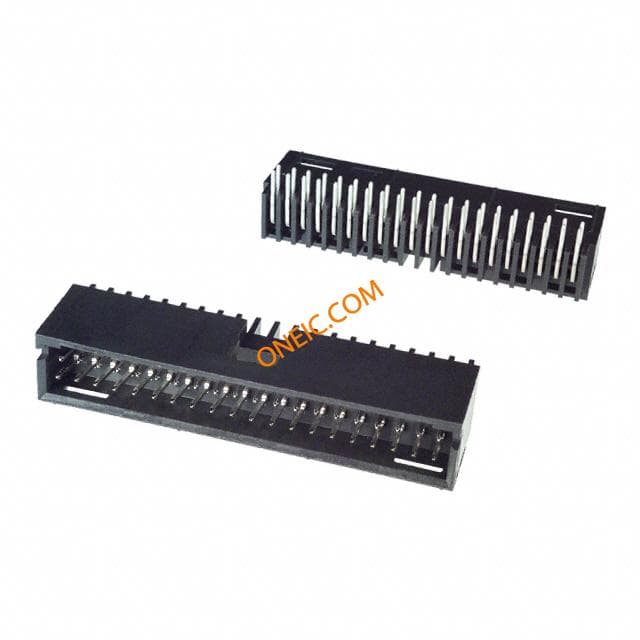

6-87579-7

6-87579-7

te connectivity / amp

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 40POS PCB TIN Headers & Wire Housings 40 HDR DRRA SHRD 40 MODII HDR DRRA SHRD LF

¥19.1080
详情

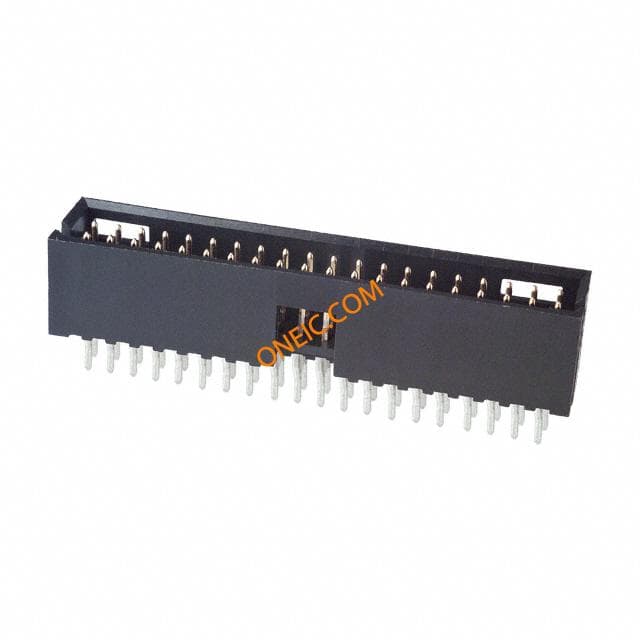

6-102699-9
