点击放大查看
1-102394-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 26 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts 26 AMP MODU MT HSG DR .100CL Headers & Wire Housings 26P MT HSG DR .100CL 26 AMP MODU MT HSG DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 标准包装规格 | 90 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 接触电阻 | 15 mΩ |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 3 A | 连接器类型 - 电压输入 | IDC |
| 保护额定电压（VPR） | 600 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 6.1 mm [ .24 in ] | 长度 | 30.02 mm [ 1.18 in ] |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 20-30 AWG |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 引脚间距 | 0.100" (2.54mm) | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Wire |
| 排数 | 2 | 壳体材料 | Thermoplastic |
| 包装数量 | 90 | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 26 |
| 接触件端接 | IDC | 位数 | 26 |
| 兼容外壳尺寸（如TM-700等） | 连接器 | 安装孔直径 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMPMODU MT |
| 产品子类型 | Receptacles / Sockets - Housings | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
1-103168-1
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 26POS 30AU Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SHRD .100CL
102399-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Contacts-AMPMODU Machine Applied CONN TERM RECEPT 22-26AWG 30GOLD Headers & Wire Housings MT RECP LP MT RECP LP MT RECP LP Search Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU
6-103168-1
te connectivity / amp
Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 26POS 30AU Headers & Wire Housings SHROUDED VER DUAL 26 detent windows Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SHRD .100CL

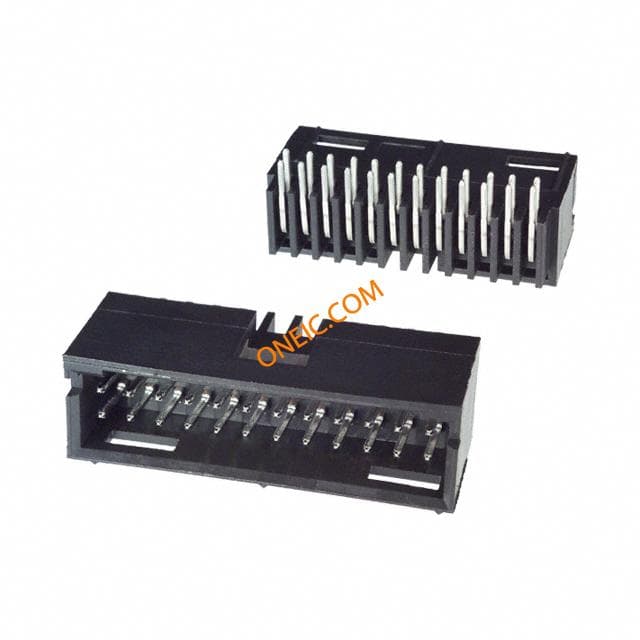

6-87579-0
