点击放大查看

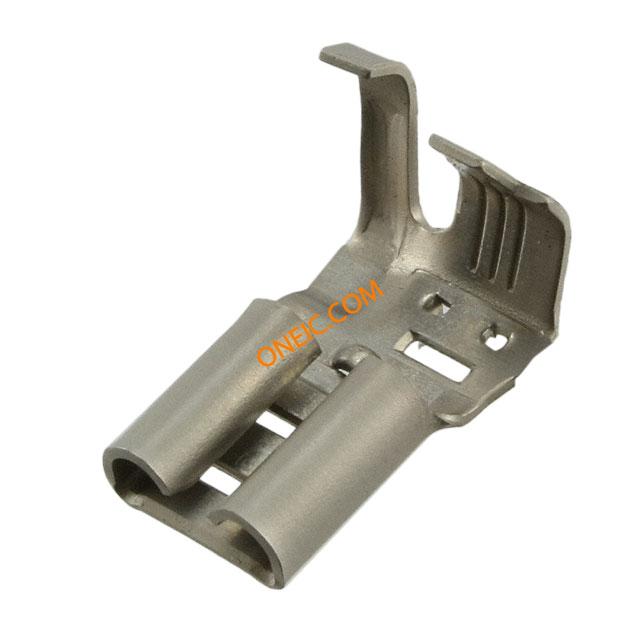

41531
| 制造商 | |
| 描述 | Quick Disconnect Terminal 12-18AWG RCP 17.01mm Strip Terminals .25 FLG FAST 18-12 CONN RECPT FLG FAST 12-18AWG.250 Quick Disconnect Terminal 12-18AWG RCP 17.01mm Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 250(6.3MM) FLAG REC 18-12 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27605CT |
| 产品类别 | Terminals | 标准包装数量 | 16,000 |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| 抗辐射加固 | No | 认可国家 | 是 |
电气参数
| 核心类型 | Open | 最大频率 | Multiple |
机械参数
| 颜色 | Blue | 深度 | 7.65 mm |
| 长度 | 19.69 mm | 包装方式 | Reel |
| 插片宽度 | 0.250" (6.35mm) | 绝缘类型 | Insulated |
| 插片长度 | 0.305" (7.75mm) | 导线线规 | 18-12 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line), Right Angle | 螺柱/焊片尺寸 | 3/8 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 90°, Flag |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | 无镀层 | 连接器用途 | Wire & Cable |
| 插入件材料 | 黄铜 | 插入力 | 普通 |
| 触头材料 | Brass | 总长度 | 17.01 mm |
| 包装数量 | 4000 | 端接样式 | Crimp |
| 适用端子尺寸 | 2.79 – 5.33 mm [ .11 – .21 in ] | 绝缘直径 | 0.110" ~ 0.210" (2.79mm ~ 5.33mm) |
| 绝缘材料 - 类型 | No | 总厚度 | .439 mm [ .017 in ] |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | ||
