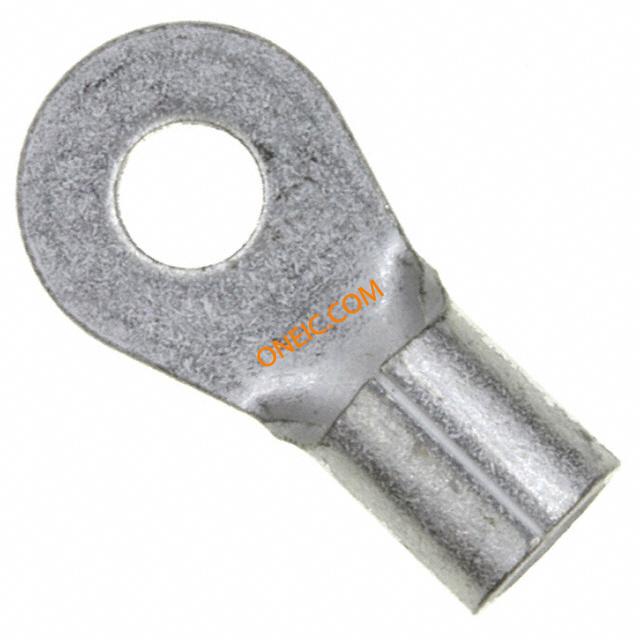

33460

制造商	TE Connectivity Ltd.
描述	Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Terminals #10 8AWG SOLI RING Ring and Spade Tongue Terminals CONN RING 8 AWG #10 SOLIS Ring terminal, SOLISTRAND, M5, 8 AWG Ring Tongue Terminal 8AWG 23.7mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRANDBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP TERMINAL,RINGTOUNGE,SOLISTRAND,8AWG,10,CLOSEDBARREL TE Connectivity SOLISTRAND 系列非绝缘镀锡触芯环形压接端子 , M5 螺栓, 23.7mm总长 TERMINAL,SOLIS R 8 10
分类	连接器解决方案压接与焊接端子/接头片形压接端子

对参数有疑问？问 AI 助手

商业参数

产品	Ring Terminals	产品类别	Terminals
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS	RoHS Compliant	海关税号	85444920
抗辐射加固	No	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	认证机构标志	No

电气参数

核心类型

Closed Barrel

机械参数

颜色	Not Required	深度	11.91 mm
形状	RING-049	表面处理	Tin
重量	0.327	材料（通用）	Copper
包装方式	Bulk	厚度	1.22 [0.048]
电缆类型	Regular Wire	重型	No
绝缘类型	Not Insulated	导线线规	8 AWG
本体表面处理	SOLISTRAND	端接方式	Crimp
基体材料	Copper	触点形状	Ring Tongue
安装类型	Free Hanging (In-Line)	螺柱/焊片尺寸	4.82 mm
端子类型	Circular	行程角度	Straight
连接器类型	:Ring Tongue	接触镀层	Tin
壳体镀层	Tin	线束直径	4.37 mm
连接器样式	Straight	总宽度	0.469
触头材料	Copper	绝缘颜色	:Uninsulated
总长度	0.933" (23.70mm)	刀片材料	Copper
包装数量	Loose Piece	主要材料	Ring
绝缘高度	Non-Insulation Support	外缘宽度	0.469" (11.91mm)
供应商器件封装	SOLISTRAND	线规或范围 - AWG	13,100 â 20,800
线规或范围 - mm²	8.00Â² [8]

产品信息

类型	Ring Tongue Terminal	连接器性别	Female
系列	346	产品特性	Brazed Seam, Serrated Termination
制造商全称	AMP

文档与媒体

在线文档

33460?RQPN=33460

在线文档

TE.Connect?C=1&PN=33460&M=BYPN&LG=1&I=13

相关型号

1490414-2

te connectivity / amp

Connector Accessories Terminal and Splice Crimping Tool Die Set Punches & Dies INDENTER U-DIE #6-2 SOLISTRAND TOOL INDENTER U-DIE SOLIS #6-2 INDENTER;U-DIE;SOLISTRAND #6-2 Terminal And Splice Crimping Tool Die Set INDENTER,U-DIE,SOLISTRAND#6-2 Crimping dies, 1490414-2, TE Connectivity INDENTER,U-DIE,SOLISTRAND #6-2

¥1801.5920

详情

1901002-2

te connectivity / amp

INDENTER, SOLISTRAND Punches & Dies INDENTER SOLISTRAND TOOL DIE INDENTER SOLIS 8AWG

¥1801.5920

详情

暂无图片

46146

te connectivity / amp

NEST INSERT SOLIS 69097 #8 Hand Tools NEST INSERT SOLIS 69097 #8

详情

601075

te connectivity / amp

BANTAM ROTA-CRIMP TOOL Crimpers BANTAM ROTA-CRIMP TOOL TOOL HAND CRIMP ROTA-CRIMP Rota crimp tool-AMP solistrand terminal Bantam Rota-Crimp Tool Rota-Crimp Hand Tools HAND TOOL, BANTAM ROTARY CRIMP Rotacrimptool-AMPsolistrandterminal CRIMPTOOL TE Connectivity Bantam ROTA-CRIMP 系列 SOLISTRAND Crimp Terminals and Splices 压接工具 , 适用于6.7 → 60.5 mm² 线规格

¥8770.0800

详情

暂无图片

46145

te connectivity / amp

Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Hand Tools INDENTER INSERT SOLIS #8 INDENTER INSERT SOLIS #8

¥8140.1984

详情

59975-1

te connectivity / amp

Crimping Dies For Solistrand Terminals And Splices Crimpers HYDRAULIC HAND TOOL TOOLS, HYDRAULIC CRIMP HYDRAULICHANDTOOL HYDRAULIC HAND TOOL

¥27132.0000

详情

1490414-1

te connectivity / amp

CRIMPING DIES FOR SOLISTRAND TERMINALS AND SPLICES Punches & Dies INDENTER U-DIE #8 INDENTER U-DIE SOLISTRAND #8 Connector Accessories Crimping Die for Solistrand Terminals and Splices INDENTER,U-DIE,SOLISTRAND#8 Crimping dies, 1490414-1, TE Connectivity INDENTER,U-DIE,SOLISTRAND #8

¥1565.4960

详情

48355

te connectivity / amp

INDENTER INSERT, SOLIS #8 Hand Tools INDENTER INSERT #8 DIE INDENTER INSERT SOLIS 8AWG Indenter Insert and Solis

¥2404.0720

详情

暂无图片

1673672-1

te connectivity / amp

CRIMP HD SOLIS W/INSR 8-2 Crimpers CRIMP HD SOLIS W/INSR 8-2 Hand Tools CRIMP HD SOLIS W/INSR 8-2 CRIMP HEAD SOLIS W/INSR 8-2AWG CRIMPHDSOLISW/INSR8-2

¥46545.6600

详情

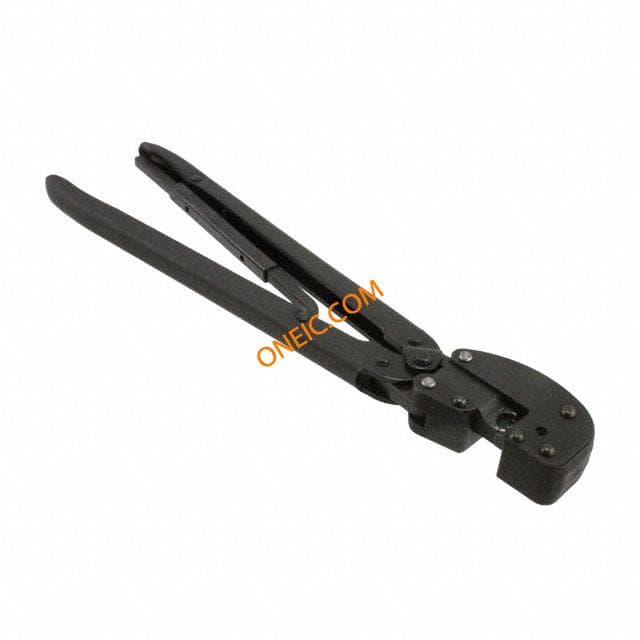

69339
