点击放大查看

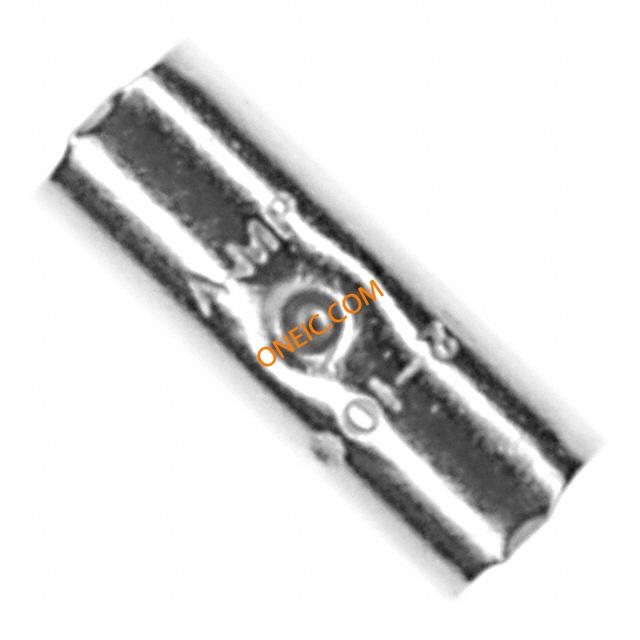

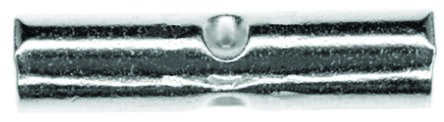

323755
| 制造商 | TE Connectivity Ltd. |
| 描述 | Splice Terminal 10-12AWG 14.35mm 5.74mm Nickel Loose Piece Terminals N/I-BUTT 12-10 Splices - Closed Barrel CONN SPLIC BUTT 10-12 AWG SOLIS Butt splice,STRATO-THERM,343°C,12-10 AWG 323755 Splice Terminal 10-12AWG 14.35mm 5.74mm Nickel Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = StandardBody Style = SOLISTRAND, STRATO-THERMSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, CRIMP TERMINAL, BUTT, 2.7-6.6MM, 340 Buttsplice,STRATO-THERM,343°C,12-10AWG Solistrand 12-10 AWG Non-Insulation Support Closed Barrel Butt Splice TE Connectivity STRATO-THERM 系列 平接 非绝缘压接接线端子, 镀镍触点, 12 → 10 AWG SPLICE,SOLIS BUTT HR 12-10 |
| 分类 |
商业参数
| 产品 | Splices | 其他名称 | A28054 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 颜色 | None | 表面处理 | Nickel |
| 长度 | 14.35 mm | 密封型 | No |
| 重量 | 0.002 | 材料（通用） | Copper |
| 底座类型 | Standard | 包装方式 | Bulk |
| 绝缘类型 | Not Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 安装类型 | Wire |
| 螺柱/焊片尺寸 | :3.28mm | 端子类型 | Butt Splice, Inline, Individual Openings |
| 连接器类型 | :Splice | 接触镀层 | Nickel |
| 线束直径 | 6 mm | 触头材料 | Copper |
| 绝缘颜色 | :(Not Available) | 总长度 | 14.35mm |
| 包装数量 | Loose Piece | 内径（直径） | 3.28 [0.129] |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 连接器颜色 | :Nickel | 外径 | 5.74 [0.226] |
| 绝缘材料 - 材质 | :(Not Available) | 舌片内部开口 | 1.07 [0.042] |
| 进线口数 | 2 | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Splice Terminal | 连接器性别 | Female |
| 系列 | :STRATOTHERM | 产品特性 | Brazed Seam, High Temperature, Serrated Mating Area |
| 制造商全称 | AMP | 产品子类型 | Splice |
环境参数
| 温度额定值 | 343 [650] | 工作温度 | :340°C |
文档与媒体
相关型号
1-49935-0
te connectivity / amp
DA BAT TL HD 22-10 SOLIS Hand Tools DA BAT TL HD 22-10 SOLIS TOOL HEAD CRIMP 22-10AWG SOLIS

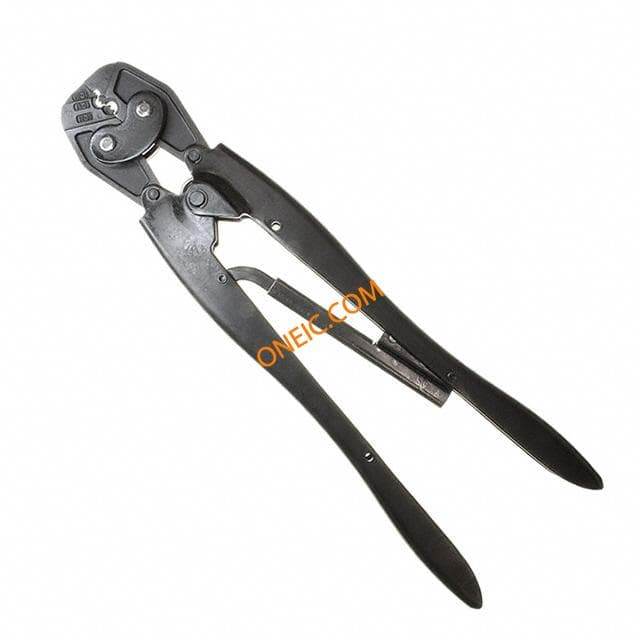

49935
