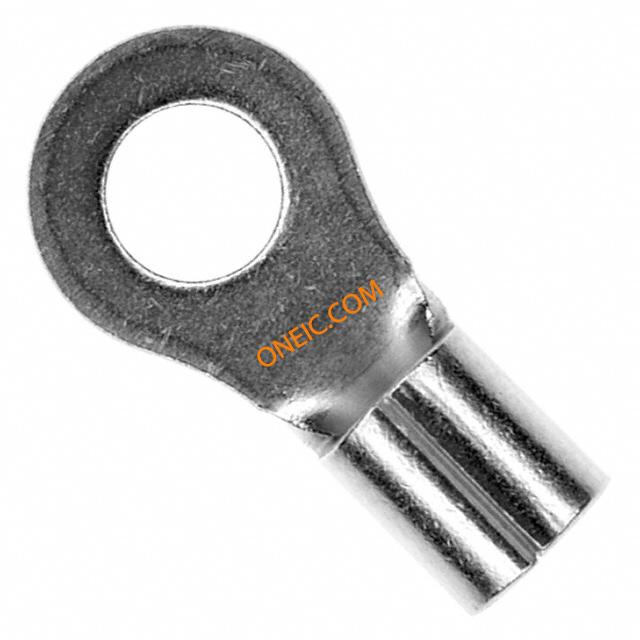

323062
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 10-12AWG 19.43mm 9.53mm Nickel Loose Piece Terminals TERMINAL HR 12-10 10 Ring and Spade Tongue Terminals CONN RING HR 10-12 AWG #10 SOLIS Ring terminal, STRATO-THERM, 343°C, M5 Ring Tongue Terminal 10-12AWG 19.43mm 9.53mm Nickel Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = SOLISTRAND, STRATO-THERMBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL, RING TONGUE, #10, CRIMP SOLISSTRATO-THERMTM,TERMINAL,SOLISRHR12-1010 Ring Terminal 19.43 mm metallic, 3...6 mm², 12...10 AWG, SOLIS, 323062, TE Connectivity TE Connectivity STRATO-THERM 系列 非绝缘 镀镍触芯 环形压接端子 , M5 螺栓 TERMINAL,SOLIS R HR 12-10 10 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 形状 | RING-084 | 表面处理 | Nickel |
| 重量 | 0.002 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.039" (0.99mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4.82 mm |
| 端子类型 | Circular | 连接器类型 | :Ring Tongue |
| 接触镀层 | Nickel | 连接器样式 | Straight |
| 触头材料 | Copper | 绝缘颜色 | :Uninsulated |
| 总长度 | 0.765" (19.43mm) | 包装数量 | Loose Piece |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 接触件尾部长度 | 1.07 [0.042] | 外缘宽度 | 0.375" (9.53mm) |
| 供应商器件封装 | SOLISTRAND, STRATO-THERM | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 321 | 产品特性 | Brazed Seam, High Temperature, Serrated Termination |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
环境参数
| 温度额定值 | 343 [650] | 工作温度 | 343 C |
